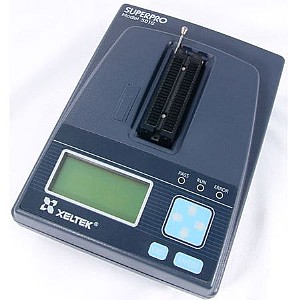

SuperPro 501S
Item No. R24
Item Weight: 2.200Kg
MOQ: 1 Unit(s)
Price:

Features:

  • Supports more than 35,030 IC devices from 217 manufacturers and continuing.
  • Programs devices with Vcc as low as 1.2V.
  • Ultra fast programming speed: Programs and verifies 64 Mb NOR FLASH memory in 11.3 seconds.
  • Built with 48 universal pin-drivers for support of today most complex devices. Universal and device independent socket adapters are available for various packages.
  • The programmer operates in either PC hosted mode or stand-alone mode.
    • Under PC hosted mode, a PC controls the programmer via a high-speed USB2.0 connection to program a chip.

    • Under stand-alone mode, the user controls the programmer via 20-characters, 4-line LCD display with 6-KEY keypad. A CF (compact flash) card stores the project files. In stand-alone mode, the user can operate multiple units to construct a concurrent multiprogramming system.

  • ISP/ICP programming capability through optional ISP/ICP adapter.
  • Only IC manufacturer approved programming algorithms provide high reliability.
  • Vcc verification at (+5%~-5%) and (10%~-10%) enhances programming reliability.
  • Provides over-current and over-voltage protection for safety of the chip and programmer hardware.
  • Compatible with Windows Vista x32and Win 7 x64
  • CE and ROHS Compliant
  • Includes the following advanced and powerful software functions:
    • Chip operation starts immediately upon proper chip insertion in Production Mode.

    • The Project function simplifies processes such as device selection, file loading, device configuration setting, program option, and batch file setting into one step.

    • Password protection provides security for project files and production volume control.

    • The Batch command combines device operations like program, verify, security into a single command at any sequence.

    • Serial number generators are available as standard or customer-specific functions.

    • A Log file provides quality tracking.

Speed Comparison:


Device Program + Verify (Sec) Compare with SP3000U Type
AT28C64B 0.8(P)+0.1(V)= 0.9(s) 1.2(P)+0.8(V)= 2.0(s) 64Kb EEPROM
24AA128 2.7(P)+1.8(V)= 4.5(s) 5.0(P)+4.0(V)= 9.0(s) 128Kb EEPROM
QB25F640S33B60 29.0(P)+14.4(V)= 43.4(s) 55.2(P)+41.4(V)= 96.6(s) 64Mb EEPROM
AT89C55WD 2.5(P)+0.4(V)= 2.9(s) 3.3(P)+1.0(V)= 4.3(s) 20KB FLASH MCU
S25FL064A 43.9(P)+14.7(V)= 58.6(s) 72.8(P)+41.4(V)= 114.2(s) 64Mb SPI EEPROM
PIC16F876A 10.1(P)+0.8(V)= 10.9(s) 22.1(P)+06.2(V)= 28.3(s)
PIC18F442 5.1(P)+1.1(V)= 6.2(s) 13.6(P)+06.7(V)=20.3(s)

Device Updates:

  • XELTEK updates software and device algorithm regularly.
  • View the latest Device List.
  • Download the current software version free of charge at Download Center.

Warranty Support:

  • Standard 2 Years Warranty: Included with purchase of SuperPro 501S. Covers device update and repair.


Volume Production Solutions:

  • By operating multiple programmers simultaneously, you can use them in a high volume production environment.
  • Cluster the programmers for flexible and easy volume production.
  • Optional Compact Flash card is necessary to store user data, and device algorithm in stand-alone operation. For most operations, XELTEK recommends the 512MB size.



Hardware & Electrical Specifications:

  • Devices Supported: EPROM, Paged EPROM, Parallel and Serial EEPROM, FPGA Configuration PROM, FLASH memory (NOR), BPROM, NVRAM, SPLD, CPLD, EPLD, Firmware HUB, Microcontroller, MCU, Standard Logic
  • Package: DIP, SDIP, PLCC, JLCC, SOIC, QFP, TQFP, PQFP, VQFP, TSOP, SOP, TSOPII, PSOP, TSSOP, SON, EBGA, FBGA, VFBGA, uBGA, CSP, SCSP,?/li>
  • PC interface: USB2.0 (High speed)
  • Stand-alone memory: Compact FLASH Card
  • Power supply: AC Adapter: Input AC 90V- 250V; Output: 12V/2A
  • Main unit: Dimensions 178(L) * 130(W) * 40(h) mm;
  • Package: Dimensions 320(L) * 300(W) * 85(H) mm;
