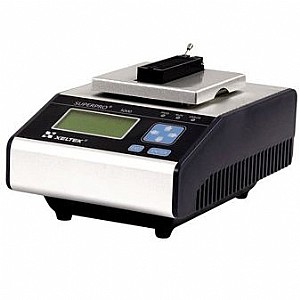

SuperPro 5000 Programmer
Item No. R260
Item Weight: 1,350.000Kg
MOQ: 1 Unit(s)
Price:

  • Supports 76,000+  IC devices from 280 manufacturers and continuing
  • Programs devices with Vcc as low as 1.2V.
  • Ultra fast programming speed: Programs and verifies 64 Mb NOR FLASH memory in 11.3 seconds and 1 GB NAND in 108 seconds.
  • Built with 144 universal pin-drivers for support of today's most complex devices. Universal and device independent socket adapters are available for various packages up to 144 pins.
  • The programmer operates in either PC hosted mode or stand-alone mode.
    • Under PC hosted mode, a PC controls the programmer via a high-speed USB2.0 connection to program a chip.
    • Under stand-alone mode, the user controls the programmer via
      20-characters, 4-line LCD display with 6-KEY
    • A CF (compact flash) card stores the project files.
  • ISP/ICP programming capability through optional ISP/ICP adapter.
  • In stand-alone mode, the user can operate multiple units to construct a concurrent multiprogramming system.
  • Over-current and over-voltage protection for safety of the chip and programmer hardware.
  • Compatible with Windows 7 & Vista & XP 32/64 bit
  • Only IC manufacturer approved programming algorithms provide high reliability.
  • Vcc verification at (+5%~-5%) and (10%~-10%) enhances programming reliability.
  • Includes the following advanced and powerful software functions:
    • Chip operation starts immediately upon proper chip insertion in Production Mode.
    • Project function simplifies processes such as device selection, file loading, device configuration setting, program option, and batch file setting into one step.
    • Password protection provides security for project files and production volume control.
    • Batch command combines device operations like program, verify, security into a single command at any sequence.
    • Serial number generators are available as standard or customer-specific functions.
    • Log file provides production quality tracking
      .

      • Devices Supported: EPROM, Paged EPROM, Parallel and Serial EEPROM, FPGA Configuration PROM, FLASH memory (NOR), BPROM, NVRAM, SPLD, CPLD, EPLD, Firmware HUB, Microcontroller, MCU, Standard Logic
      • Package: DIP, SDIP, PLCC, JLCC, SOIC, QFP, TQFP, PQFP, VQFP, TSOP, SOP, TSOPII, PSOP, TSSOP, SON, EBGA, FBGA, VFBGA, uBGA, CSP, SCSP
      • PC interface: USB2.0 (High speed)
      • Stand-alone memory: Compact FLASH Card
      • Power supply: AC Adapter: Input AC 100V- 240V; Output: 12V/1.5A
      • Main unit: Dimensions 148(L) * 216(W) * 94(h) mm; Weight 3.5 lbs (1.6 Kg)
      • Package: Dimensions 301(L) * 252(W) * 145(H) mm;
