Home » Maxi Autel Products » Autel Maxivideo MV400 Digital Videoscope with 5.5mm Diameter Imager Head Inspection Camera

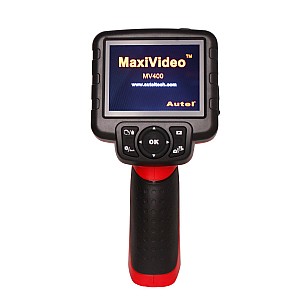

Autel Maxivideo MV400 Digital Videoscope with 5.5mm Diameter Imager Head Inspection Camera
Item No. X20
Item Weight: 2.400Kg
MOQ: 1 Unit(s)
Price:

Autel Maxivideo MV400 Digital Videoscope with 5.5mm diameter imager head inspection camera


Autel Maxivideo MV400 not only features a 3.5" full color LCD screen, auto focus and viewing capacity as close as 1" with crystal clear output, but also offers the capability to stream digital video directly to a PC. The Multipurpose Videoscope is an economical solution to inspect machinery, facilities and infrastructure in the safest, quickest and most cost-effective manner possible.

MV400 Features:

Records and plays back still images and video clips
3.5 " high resolution full color LCD display (320x240)
Easy-to-use, multi-language interface
Wide camera angle for images with 640x480 resolution
With optional removable Micro SD cards, saves images and videos to take with anywhere
On-screen horizontal/vertical reverse
5x digital zoom for increased viewing
Mini USB connector for uploading images and videos to a computer
Narrow probe diameter available in either 8.5mm(0.33") or 5.5mm(0.22") and fits most spark plug holes
White LED to illuminate the inspection area, with illumination control
Views objects as close as 1"
Oil and scratch resistant tempered glass lens
1M (39.4") semi-rigid, but flexible watertight shaft
Built-in rechargeable Li-ion battery with up to 3-4 hours of continuous use
Ergonomic and durable tool housing
One-year limited warranty

Autel Maxivideo MV400 specification:

Recommended use                       Indoor
Optimal viewing Distance            1" to 14" (2.5cm to 35.6cm) with 8.5mm diameter imager head 3/8" to 12" (0.95cm to 30cm) with 5.5mm diameter imager                        head Image capture   JPG images (640x480) AVI videos (320 x 240)
Screen type display                        3.5" TFT LCD
Display resolution                           320 x 240
Power supply                                   Built-in rechargeable lithium-ion battery pack (3.7V/1640 mAh)
Tested battery life                           3-4 hours of continuous use
Dimensions                                    199 x 100 x 178mm (7.83" x 3.94" x 7.0")
Recording medium                        Micro SD card (Micro SD card is optional and not included)
Imager head                                   18.5mm (0.33") is standard and 5.5mm (0.22") is optional.
Waterproof                                       Imager head and cable to 3m (10')
Additonal ports                               USB, video out (TV-out) port
Operating temp.                             Main unit: 32°F to 113°F (0°C to 45°C); Cable: 14°F to 176°F (-10°C to 80°C)
Storage temp.                                  -4°F to 158°F (-20°C to 70°C)
Video output                                     RCA
TV out                                                NTSC, PAL

Package including:

1pc x Autel Maxivideo MV400
1pc x User’s manual
1pc x Protective carrying case
1pc x Imager head and cable
1pc x Charger
1pc x USB cable
1pc x Video out-cable ( TV-out cable)

Autel Maxivideo MV400 related pictures:

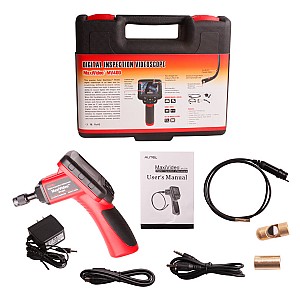

autel maxivideo mv400 package list
