468 key pro manual.click here
468 KEY PRO III Third Generation ID46 Copy Key Programmer
1. Language: English Only
2. It is easy for you to read and write 46 chips information.
Note:can't support copy ID48 and 4D chips
How to Update 468 KEY PRO III Third Generation?
1 install the driver
2 open the upgrade program selected com port
3 open the file in the upgrade program (upgrade v1.02 New. Bin)
4 the upgrade button will turn black after you click on the electrical source,just waiting until walking a scroll bar
5 PCS prompt upgrade success
468 Key Pro III Operate Steps:
1.Turn on the Left switch of 468 KEY PRO third generation, after turn on it, the main interface pops up. Then click “COPY”. "copy46"
2. Click "CMT46 collect" Upper left corner of the screen.
3. This page is a copy of the ID46-chip page, now it is copying ID46 chip.
3.1.Put the original chip vertically into the bottom right corner of the hole, click on " read UID". Note: Do not going to be flat on the hole nearby, this is not easy to read information inside the chip.
3.2.Put the new key vertically into the bottom right corner of the hole, click on "Conf ig". Note: Do not going to be flat on the hole nearby, this is not easy to read information inside the chip.
3.3.Use new car key collect information in car,first of all,take a key blank, put the new key into the key blank, insert the car key hole, four consecutive starts,each time interval of 3-5 seconds
3.4.Put the key which already collected information vertically into the bottom right corner of the hole, click on "read". Screen will appear a set of "random number" and "signature".
4.After crack Original key , put the original key hole vertically into the bottom right corner, click on " crack", the screen will display the progress of the original key crack.
5.New key copy. Put the key which already collected information vertically into the bottom right corner of the hole, click on "Copy". Screen will display "copy successful" message.
6.If in the process, chip key copy failed, put the key into bottom right corner of the hole, click on "Initialize", restart again from the first step.

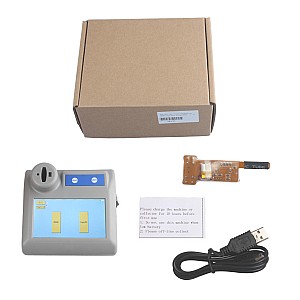

Packing List:
1pc x 468 KEY PRO
FAQ:
Q: Can 468 KEY PRO III program Chrysler key?
A: This device is for copy ID46 keys, it can copy the key chip, no matter the car brand.
468 KEY PRO 3-generation machine functions:
1 can copy 46 chips, the same methods as JMA and CN900
2,use dedicated 46-46C chip to copy
3.46C represents 46 of the chip can be copied (functions are the same
as JMATPX4, CN3 chip , but can not be used in the CN900. It can only be
used in 468KEYPRO machine)
4 can write 48 chips PG3 ID number, use OEM48 chip to copy. - See more
at:
http://store.hklock.com/product_view.asp?pid=2725#sthash.kq3NUkU7.dpuf
