AD9851: Complete DDS synthesizer
Item No. U11
Item Weight: 0.400Kg
MOQ: 1 Unit(s)
Price:

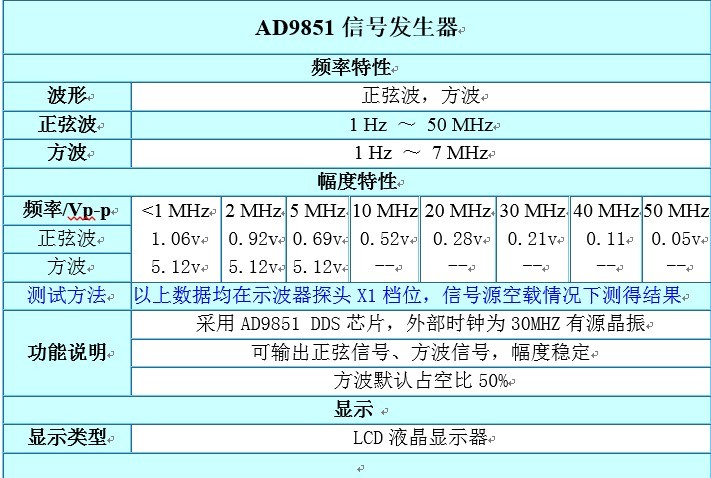

AD9851:  Complete DDS synthesizer

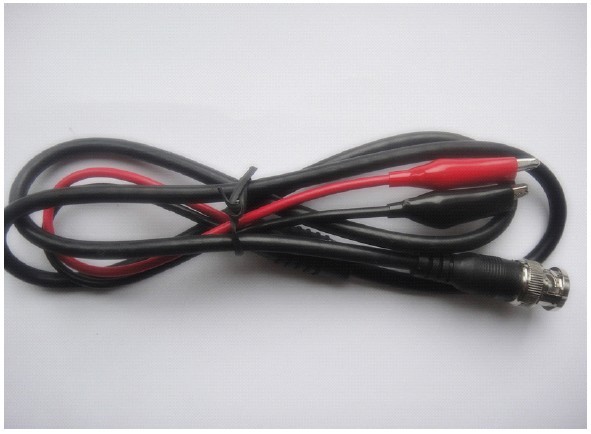

BNC cable:

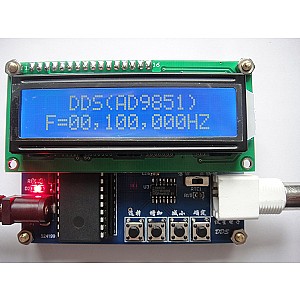

Waveform selection: Left for Square wave, right for Sine wave.
Buttons:from left to right,

Selection button:Press to enable and move the cursor on the LCD display, while the LCD indicates which digit of the output frequency is     being displayed and set.

Increase button:Press to add 1 to the current digit value.
Reduction button:Press to deduct 1 to the current digit value.
Set button:Disable the cursor and end modification.

Warning The power source SHOULD be 7 – 12VDC, barrel inner–positive! More than 12VDC will cause over-voltage damage to this board
