MWG20 user manual. click here
1 OVERVIEW

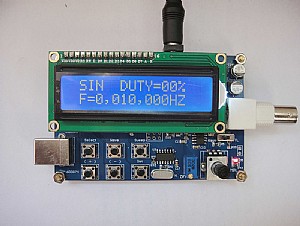

MWG20 Is based on direct digital synthesis (DDS) signal generator, using the CPLD
design,easy to use, high signal stability. At the same time with TTL signal output, the
output signal to adjust the amplitude andDC offset, and the instrument has a sweep
function, were able to set the scanfrequency range and scan time. Suitable Laboratory
technicians and electronics enthusiasts to use.

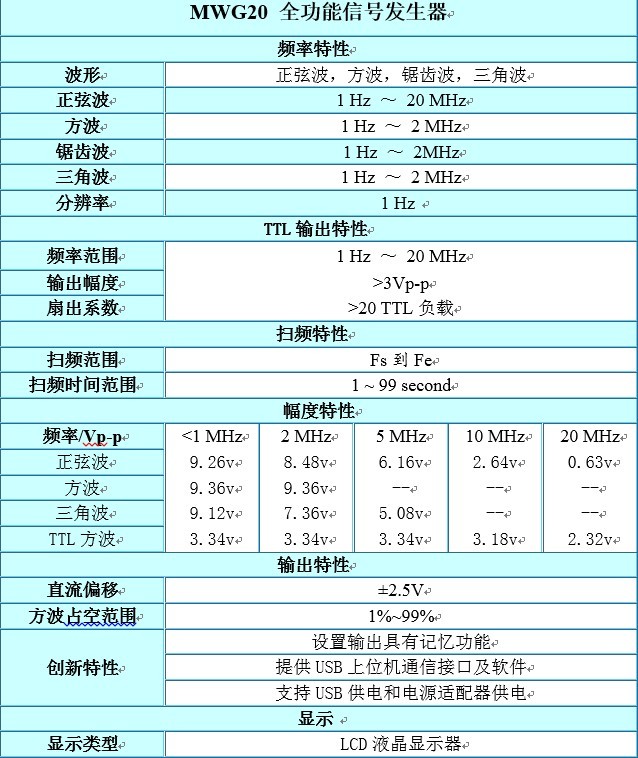

FEATURES
◆ OUTPUT
Waveform Sine, Square （ Duty circle variable ） , Trianglar,
Sawtooth
Amplitude ≥9Vp-p(no load)
Impedance 50Ω±10%
Offset ±2.5V
Display LCD1602
Frequency range 1Hz ~ 20MHz(Sine), 1Hz ~ 2MHz(Others)
Frequency resolution 1Hz
Frequency steadiness ±1×10-3
Frequency precision ±5×10-3
Sine wave distortion ≤0.8% (1kHz)
Triangular wave linearity ≥98% (1Hz~10kHz)
Square wave rising/falling time ≤100ns
Square wave duty circle 1%~99%
◆ TTL OUTPUT
Frequency range 1Hz ~ 20MHz
Amplitude >3Vp-p
Fan-out coefficient >20 TTL load
◆ SWEEP FREQUENCY
Sweep range Fs - Fe
Sweep time range 1 ~ 99 second
Amplitude 0.5Vp-p ~ 20Vp-p
