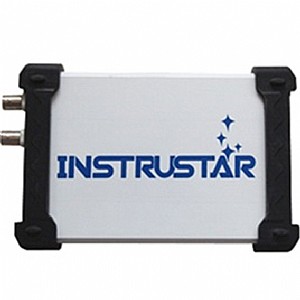

PC-based USB2.0 ISDS210A 2CH Digital Oscilloscope 40M Virtual Oscilloscope Spectrum Analyzer
Introduction:
ISDS210A dual-channel digital oscilloscope, with "low-cost,
high-performance" as the design goals. well-designed bandwidth of 40M,
100M sampling rate, 2 channels, alternating support X, Y and XY
alternating pattern of two-channel virtual oscilloscope, spectrum
analyzer. The device communicate with the PC via high speed USB2.0.
Specifications:
|
Digital oscilloscope
|
|
Channels
|
2
|
|
Impedance
|
1MΩ 25pF
|
|
Coupling
|
AC/DC
|
|
Vertical resolution
|
8Bit
|
|
Gain range
|
-16V ~ 16V（probe X1）
-160V ~ 160V（probe X10）
|
|
Vertical accuracy
|
±3%
|
|
Timebase range
|
1ns-20s
|
|
Input Protection
|
Diode，50Vpk
|
|
Autoset
|
Yes(10Hz to 40MHz)
|
|
Trigger Mode
|
Auto、Normal and Signal
|
|
Trigger Type
|
No、Rising edge、Falling edge、
Rising edge or Falling edge
|
|
Trigger level
|
Yes
|
|
Trigger Source
|
CH1, CH2
|
|
Buffer Size
|
512KB/CH
|
|
Bandwidth
|
40MHz
|
|
Max sample
|
100MS/s
|
|
Vertical mode
|
CH1, CH2, ADD, SUB, MUL
|
|
Display Mode
|
X、Y-T和X-Y
|
|
measurements
|
Yes
|
|
Wave save
|
Osc(Private)、Excel and Bmp
|
|
Spectrum analyzers
|
|
Channels
|
2
|
|
Bandwidth
|
40MHz
|
|
Algorithm
|
FFT(18 windows)、correlation、power spectrum
|
|
FFT points
|
8-1048576/CHN
|
|
FFT measure
|
Harmonic(1-7)、SNR、SINAD、ENOB、THD、SFDR
|
|
Filter processing
|
FIR filter supports arbitrary range of frequency
sampling method , and Rectangle, bartlett, triangular, cosine, hanning,
bartlett_hanning, hamming, blackman, blackman_Harris, tukey, Nuttall,
FlatTop, Bohman, Parzen, Lanczos, kaiser, gaussand dolph_chebyshev,
window method design.
IIR filter support "Butterworth", "Chebyshev I", "Chebyshev II", "Elliptic" type of filter design
|
