Home » Professional Tool » XTOOL EZ300 Four System Diagnosis Tool with TPMS and Oil Light Reset Function
XTOOL EZ300 Four System Diagnosis Tool with TPMS and Oil Light Reset Function
Item No. A354
Item Weight: 1.800Kg
MOQ: 1 Unit(s)
Price:

XTOOL EZ300 Four System Diagnosis Tool with TPMS and Oil Light Reset Function

Layout of EZ300:


Layout of EZ300 Display 1
1.SD CardPort: up to 32GB extension SD card
2.HDMIPort: Compatible with HDMI
3.Micro USB: Battery charge or data synchronization with PC.
4.AudiPort: For headphone
5.Power Button: Power on or off

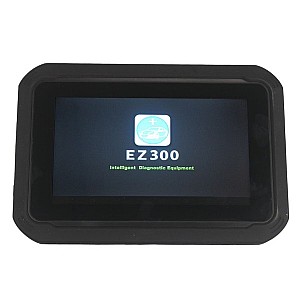

Front View of EZ300 Tablet

Front View of EZ300 Tablet Display
Back View of EZ300 Tablet
Back View of EZ300 Tablet Display

Side View of EZ300 Tablet

Side View of EZ300 Tablet Display
EZ300 Exploded Diagram

EZ300 Exploded Diagram Display
Layout of EZ300 VCI Box
Layout of EZ300 VCI Box Display

1. Power Indicator: it turns green when power is on.
2. Bluetooth Indicator: it turns red when Bluetooth is not connected; it turns blue when Bluetooth is connected successfully.
3. Vehicle Indicator: When VCI box is connected with vehicle successfully, it turns green.
Layout of EZ300 VCI Box Display 2

Features:
*Easy registration with EZ300 connected to WIFI
*Wireless diagnosis via Bluetooth
*One-click software update via WIFI
*Remote access
*Diagnosis reports in PDF file
*Record and playback live data
*7 inch multi-touch screen
*On-board battery
*Extensive vehicle coverage for most US, Asian and European vehicle makes

 Easy registration with EZ300 connected to WIFI. Don’t bother to use PC for registration.

Activation Photo Display

Wireless diagnosis via ultrafast Bluetooth technology
Connection Picture Display

One-click update via WIFI. Get the latest software whenever you want! Never miss the update with pop-up update reminder!

Update Display 1

Remote access, which is perfect for training, demonstration and even remote diagnosis.
Remote Access Display

Diagnosis reports in PDF file. Print out the diagnosis report and show it to car owners when they come and fetch their cars. They will be really happy knowing what kinds of problems have been fixed for their cars.
PDF File Display

Extensive vehicle coverage for most US, Asian and European vehicle makes American: GM, Chrysler, Ford, Chevrolet, Hummer, Cadillac, Saturn

 Vehicle Coverage Display

Europe: Volvo, Skoda, Land rover, Jaguar, Ford, Sprinter, Seat, Renault, Peugeot, Opel, Vauxhall, Fiat, Citroen, BMW, BENZ, AUDI, VW, Porsche, Lancia, MayBach, Rolls-Royce, Mini, Smart, Transporter, Lamborghini, Gugatti, Abarth, VW_CV
Asia: Acura, Honda, Infiniti, Isuzu, Lexus, Mitsubishi, Nissan, Suzuki, Kia, Toyota, Hyundai, Mazda, Daihatsu, Daewoo, Scion, Holden, AUFord and more…
Chinese Vehicle: Geely, Chery, Greatwall, Jiao, Lifan, BYD, Brilliance and more...

Four System Diagnosis: Engine, ABS, SRS, Transmission and TPMS

Four System Diagnosis Display

Basic Function: read fault codes, clear fault codes, live data
Basic Function Display

Accurate live data in both Wave and Dashboard form
Function Display 2

Operating System:              Android 4.4.4
Memory:                                1GB RAM,16GB Flash
CPU                                       Quad Core, 1.3 GHz
Display                                  7 Inch IPS 5-Point Multi-touch Screen with 1024×600P Resolution
Sensors:                               Gravity Sensor, Light Sensor
Input/Output:                         Microphone, Dual Speakers, 3.5 mm headset jack, MiniHDMIPort, 2.0USBPort, TF Card Port
Battery:                                   2400mAh, 3.7V
WIFI                                         WIFI 2.4Ghz
Bluetooth                               100 Meters
Power Voltage:                      3.7V
Power Consumption:           4W
Operating Temperature:     -20 to 50℃(-4 to 126℉)
Humidity:                               <90%
Dimension:                           (L*W*H): 208*140*15.5mm


Difference Between XTOOL Products:

  X100PAD EZ500 EZ400 EZ300
Full System Diagnosis   yes yes Engine, ABS, SRS, AT
Key Programming yes yes
Oil Reset/Engine Oil Light Reset yes yes yes yes
EPB Electrical Parking Brake Adaptation yes yes yes
TPS Throttle Body Adaptation yes yes yes
Odometer Adjustment yes yes
EPS Electric Power Steering Calibration yes yes
Gear Learning yes yes
ABS Exhaust yes yes
ECU Reset yes yes
Tire Pressure Warning Light Reset  yes yes
Battery Reset yes yes

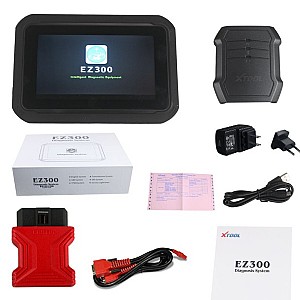

Package Including:

1pcs X OBD II-16
1pcs X Main Cable
1pcs X EZ300 Tablet
1pcs X VCI Box
1pcs X Charger for Tablet
1pcs X US Power Adapter
1pcs X EU  Power Adapter
1pcs X MicroUSB Cable
1pcs X Certificate of Quality
1pcs X Packing List
1pcs X User Manual
1pcs X Carton box
