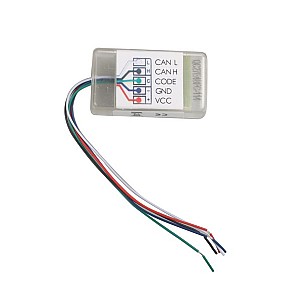

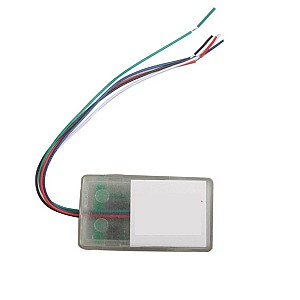

Universal IMMO Emulator V5.3
Universal IMMO Emulator V5.3Support:
48 Programmi IMMO
18 Sensor Occupant Detector
Compatible with the Following Models:
AUDI, SEAT, SKODA, VW benzina-diesel up 2000
AUDI, SEAT, SKODA, VW BOSCH ME7 OFF
AUDI, SEAT, SKODA, VW BOSCH ME7 ON
VW EDC16 with CAN OFF
* Engine 1,9 - 2,0 Tdi
VW EDC16 with CAN ON
* Engine 1,9 - 2,0 Tdi
VW EDC16 with CAN OFF
* Engine 2,7 - 3,0 Tdi
VW EDC16 with CAN ON
* Engine 2,7 - 3,0 Tdi
VAG Hitachi IMMO Emulator
VAG Valve CODE IMMO Emulator
EDC15) VW, Audi, Seat, Skoda systems W2 and W3 from 2000 year to about 2004 year
(2006 year, and even to 2008 year). Emulator works in cars with two plug Engine
Control Module Diesel EDC15 capacity: 1,4Tdi 1,9 Tdi 2,5 Tdi.
EDC16) VW Tdi EDC16 – immo off, immo on 0 281 011 XXX : VW T5 1,9 Tdi 2005 r ,
VW/BOSCH 0 281 011 856, 038 906 016M, AXC – engine code / 105 KM, VW T5 2,5 Tdi 2006/2007 r , VW/BOSCH 0 281 011 568, 070 906 01b AJ, AXD – engine code / 130 KM
Skoda Octavia 1,9 Tdi 2004 – 2010 r, VW/BOSCH 0 281 011 883, 1037371259, BJB – kodsilnika / 105 KM, VW T5 1,9 Tdi 2003 r VW/BOSCH 0 281 011 855, 038 906 016N, AXB – engine code / 105 KM
Citroen, Peugeot, Renault ECU with processor TMS 374
Daewoo ECU with processor HC11F1
* Engine Control Module with white-red plug and with processor Motorola HC11F1
* Engine Control Module with blue plugs and with processor Motorola HC11F1
Fiat, Citroen, Peugeot without CAN
* CITROEN, FIAT, PEUGEOT JTD with Immo 2 plugs
* ALFA, LANCIA, FIAT, 1,9 JDT 2,4 JDT with Immo 5 plugs
* IAW49F FIAT Bravo 1,6 16V
* IAW 4AF FIAT Seicento, Panda 1,1 8V
* Lancia Kappa 2,0i 16 V Turbo 0 261 203 792
*Lancia Kappa 2,0i 20 V 0 261 203 670
*Lancia Kappa 2,4i 16 V 0 261 203 669
Kia Sportage 2,0 Td - Engine Control Module ZEXEL
Matiz, Tacuma and Lanos 1,4 hybrid
* Matiz Engine Control Module SIEMENS and KEMSCO
* Tacuma Engine Control Module KEMSCO
* Engine control Module hybrid for DOHC 2000cc 16V or Lanos OHC 1400cc - NEW
* Kalos Engine Control Module Sirius D42 1.2
* Chevrolet Aveo Engine Control Module 4R 1.2 8V
Mercedes CR without CAN
Infrared immo, pyxis 12 pin + 2 pin CAN but only occupied L (H CAN empty)
* 2,2 Diesel Lucas
* 1,8 ; 2,0 ; 2,3 gasoline Engine Control Module (hybride) Siemens
Mercedes CR1 with CAN Older
* Vito CDI 5 plugs
* A-Class 1,7 CDI 5 plugs
* EDC/MSA15.1 2,5 Td 2,9 Td 3,0 Td 1 plug with mechanical and electronic ignition switch
* ECM Bosch with HC11E9 in cars with engines 320-6 cylinders, 430-8 cylinders ML320
* Lucas 4 plugs E-Class, 2,2 diesel with mechanical and electronic ignition switch
* A-Class ECM VDO MSM 1,4 - 1,6 - 1,9 gasoline
Mercedes CR2 with CAN Newer
* SPRINTER 2,2Cdi 2,7Cdi - it starts automaticly
* ML 2,7Cdi 5 plugs - it starts automaticly
* it also works in 2,7 and 3,2 with electronic ignition switch - it starts automaticly
Mercedes CR1 with CAN EZS
Mercedes CR1 with CAN INFRARED
Nissan from 2000 to 2002 year
* ECU from 2000 to 2002 r – immo NATS
* 2200cc and 2700cc diesel 5 plugs with memory 24c02
* 1,5 and 1,8 gasoline Hitachi MEC with memory 93c46
* 1.8 and 2.0 gasoline Hitachi MEC with memory 93C56
* 1.4 gasoline Bosch witch memory 24LC02
Models: Almera, Primera, AlmeraTino, Terrano:
* 0 281 010 141
* 0 281 010 718
* 0 281 010 265
* 0 281 010 708
* 0 281 010 809
* 0 281 010 316
* MEC200
Opel
* Engine Control Module 1,2 - 1,4 gasoline with two black plugs and processor Motorola HC11E20
* Engine Control Module 2,0 and 2,2 gasoline with memory eeprom 24c02 : 0 261 203 629 ;
0 261 203 548 ; 0 261 203 630
Renault without CAN
* Sirius 32 without CAN
* Sirius 34 1,4 ; 1,6 ; 2,0
* EMS 3132 without CAN
* 1,9 and 2,2 DCI without CAN
* 1,5 DCI without CAN
* 1,9Dti 1 plug
* 1,9Dti 2 plugs
* 1,9 Diesel DCU3
* 2,8 Td
* 3,0 gasoline 1 plug
Renault CAN - NEW
Sirius 32 CAN - NEW
Delphi 3 Plug 1.5 DCi with CAN - NEW
Bosch EDC16 3 plug
Bosch EDC15 3 plug eprom 5P08C3
Suzuki
* Engine Control Module with memory OKI
* Engine Control Module with memory X24C01
Citroen, Peugeot - CAN
ECU EDC16 - 1,4 HDI - 1,6 HDI
ECU EDC15 C2 – 2,0HDI Whit CAN
Sensor Occupant Detector
Mercedes
* E-class W211 (2002-2004) airbag Temic,
* S class W220 (2003-2005)
Mercedes
* A-class W168 (1997-2001)
* C-class W202 (1999-2001),
* Vito W638 do 2003,
* ML airbag TRW 1999,
* E W210 do 1999
Mercedes
* W210 (2000-2003)
* E-class
* Vito W639 (2002-2005),
* ML W163 od 2000,
* A-class W168 (2002-2005)
* S class W220 (2000-2003),
* C-class W203 do 2005,
* CLK W209,
* Vaneo
Mercedes NEW
* E-class W211 from 2004 to 2007 (only Temic)
* SL W230 model 2004 only
* SLK W171 from 2004 to 2011
Mercedes NEW
* E-class W211 from 2003 to 2007 (only BOSCH)
* C-class W203 form 2006 to 2007
* CLS W219 from 2005 to 2010
* CLK W209 from 2006 to 2009
* S-class W220 from 2002 to 2005
* S-class W221 model 2006 only
BMW 2007
* BMW Europe up to 2007 to 2010
* E60, E63, E64, E65, E70, E71, E81, E90, E92, E93
BMW
Europe as of 1997 to 2007 year
* E31, E36, E39, E39, E46, E53
Models form 2003 to 2007
* E60, E63, E65, E87, E90
Mini Cooper 2002-2005
Mazda
* Premacy,
* MX-5,
* 626,
* 323,
* 6
Fiat
* Stilo
Package Including:
1pc x UNIVERSAL IMMO Emulator V5.3
