UCDS allows the user to: – Diagnose the majority of car parts and components that are connected to a central electrical module (GEM, BCMii) through the data bus (CAN); – Receive data embedded in the car components and modules, including their part number, version, calibration, serial number; – Make the necessary changes to the central configuration of the car, and change the configuration of the modules and components if necessary; – Update the calibration (firmware) of the modules and components of the vehicle, including the engine (the so-called chip tuning); – Perform regular language adaptation of the audio modules manufactured by SONY (Russian language only); – Other…

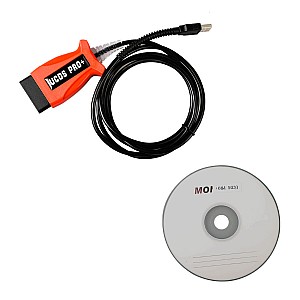

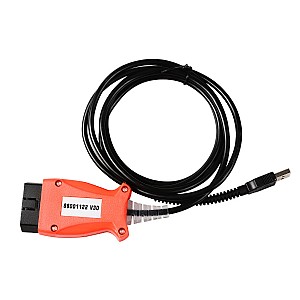

The UCDS consists of drivers of the serial bus USB-serial (recommended drivers FTDI), hardware adapter and the actual UCDS-programm. The software interface of the UCDS interface has main window’s mode. You need to select the type of the vehicle or select the service mode for adapter`s firmware update or other service functions. UCDS currently works with the following platforms: Focus II 2004-2011; Focus III 2011, 2015 ; Kuga I, Kuga II; C-MAX; S-MAX; MONDEO IV; Mondeo 2015 ; Galaxy ; Tansit; Fiesta 2008, 20015 etc..
