Home » Launch x431 Products » Launch X431 Pro Mini Bluetooth With 2 Years Free Update Online
Launch X431 Pro Mini Bluetooth With 2 Years Free Update Online
Item No. A386
Item Weight: 3.600Kg
MOQ: 1 Unit(s)
Price:

Launch X431 Pro Mini Bluetooth With 2 Years Free Update Online Powerful Than Diagun

Launch X431 Pro Mini Deion:

X431 PRO MINI is a stylish Android-based vehicle trouble diagnostic tool. It inherits from LAUNCH’s advanced diagnosing technology and is characterized by covering a wide range of vehicles, featuring powerful functions, and providing precise test result.

Language:  Arabic, Polish, German, Russian, French, Finish, Dutch, Czech, Norwegian, Portuguese, Japanese, Swedish, Spanish, Italian, English, Denish, Korea
X431 PRO MINI Update: One-Click Free Update Online for 2 Years, when free update expired, update cost will be $400 for one year and $600 for two years.

Launch X431 Pro Mini Features:

1.Support multi-brand manufacturers,multi-functions and special functions
2.One-click Update
3.Provides automotive handbook, repair case and wiring diagrams.
4.Configures I/M tool enables exchange repair experience and perform remote assistance.
5.Browser: built-in Wi-Fi module makes surfing on the internet freely.
6.Email: allows you to send and receive emails.
7.Settings: to configure your personalized X-431 PRO MINI through it.
8.Applications: other android based applications can be customized to install or uninstall.

Launch X431 Pro Mini Special Functions:

Oil Reset Service
Steering Angle Calibration
Electronic Parking Brake Reset
Battery Register / Battery Maintenance
ABS Bleeding
Electronic Throttle Position Reset / Learn
Diesel Particulate Filter (DPF) Regeneration
Tire Pressure Monitor System Reset
Gear Learning
Immobilizer Matching
Fuel Injector Coding

Launch X431 Pro Mini Reset Function:

Oil Light Reset all you to reset the service lamps on the instrument cluster
EPB Service allows you to perform the service and maintenance of brake systems
ABS Bleeding keeps the tires from locking up immediately when they are brakes,causing rollovers and other condition
Battery Registration helps you reset the vehicle life after you replace the battery to ECU to work properly
Tire Pressure Monitor System Reset let you TPMS more safer and concise.
Gear Learning allow to relearn the communication of Gear Position information
Anti-theft matching lets you to start and drive vehicle successfully
DPF(diesel particulate filter) Regeneration lets you erform the DPF cleaning.
SAS Calibration function lets you perform calibration of the Steering Angle Sensor


Actuation Test

Launch x431 pro mini support Actuation Test, it can send information to and receive information from a vehicles control module.



 ECU Coding
Launch x431 pro mini support ECU Coding , if you replace a new ecu for car, x431 v can help you code it. It is very useful for mechanic.





Injector Coding
Sometimes, car need to change a new injector, pro mini can help you code new injector.



Launch X431 Pro Mini Vehicle Models List:

Luanch X431 PRO MINI supports all electronic control systems on 12V EFI models, incl. more than 150 European, American and Asian models like Maserati, Ferrari, Rolls Royce, Bentley, Mercedes-Benz, BMW, Audi.Diagnose the electronic control system of prevailing vehicle models covering Asian, European, American and Chinese. It achieves full car model and full system vehicle trouble diagnosis

         Software         Car Brand           Software           Car Brand               Software       Car Brand Software        Car Brand
1 CHANGCHENG 28 BXGM 55 KIA 82 CHANGHE
2 DAEWOO 29 SPARK TY 56 RENAULT 83 FIAT
3 HUACHEN 30 USAFORD 57 SKODA 84 SAICMG
4 FORD(AU) 31 PEUGEOT 58 SPRINTER 85 MAZDA
5 ZHONGXING 32 SUZUKI 59 ROVER 86 ZHONGTAI
6 AUTOSEARCH 33 RESETOIL 60 WEILI 87 JAGUAR
7 RESETSAS 34 PROTON 61 INDIANMARUTI 88 OPEL
8 BAIC 35 AST ONMARTIN 62 INDIANMAHINDRA 89 VOLVO
9 INDIANTATA 36 RESETIMMO 63 PERODUA 90 CHRYSLER
10 SAIPA 37 UAZ 64 AUSTHOLDEN 91 DAIHATSU
11 DEMO 38 ZAZ 65 RESETINJEC 92 FLYER
12 JACTY 39 PAZ 66 BUGATTI 93 HMAZDA
13 MARUTI 40 LUXGEN 67 RESETTPMS 94 HYUNDAI
14 PERODUA 41 TOYOTA 68 EOBD2 95 PROTON
15 VAZ 42 VW 69 HAFEI 96 SUBARU
16 PORSCHE 43 CHANGAN 70 HAOQING 97 SSANGYONG
17 QIRUI TY 44 AUDI 71 LIFAN 98 JOYLONG
18 RESETBRAKE 45 CITROEN 72 MAHINDRA 99 FERRARI
19 SAMSUNG 46 DFXK 73 NISSAN 100 SEAZ
20 ECUAID 47 FUTIAN 74 XIALI 101 HOLDEN
21 MASERATI 48 HONDA 75 ZHONGHUN 102 MITSUBISHI
22 RESETGEAR 49 LANDROVER 76 TATA 103 SAAB
23 BMW 50 LIUWEI TY 77 TRUMPCHI 104 GAZ
24 GM 51 XINKAI 78 RESETBMS 105 JIAO
25 SEAT 52 BXFIAT 79 AUSTFORD 106 RESETBLEED
26 ISUZU 53 SMART 80 IZH 107 RESETET



What is the Different Between Launch X431 Pro Mini and X431 Pro?



  No.  ITEM Launch X431 Pro Mini X431 Pro
1 Picture
2 Software      PROS(Free Upgrade for 2 years)      Pro
3 System Android 5.1 Android 4.2
4 Screen size 6.8 inch 7 inch
5 Size(L*W*H) 205.2x110.7*40.0mm 198*124*10.1mm
6 Weight 0.5kg 0.64kg
7 Screen resolution 1280*720 1.3GHz Quad Core
8 Processors 1.3 GHz Quad Core 1GB
9 RAM 2GB 1G
10 Hard disk 16GB (TF card 64g) 8GB Expandable to 32G
11 Battery 3000mAh 3000mAh
12 Diagnostic Software 108 cars 108 cars
13 Diagnostic Mode Bluetooth Bluetooth
14 Upgrade Mode Online One-click upgrade       Online One-click upgrade
15 Cemera Rear 500Mic+front 200Mio Rear 30Mio+front 320Mio
16 USED as a pad Y Y
17 Software screenshot Y Y
18 Voice Y Y
19 Live Chat(CC) Y Y
20 Maintenance info Y Y
21 Special Features 11 10
22 Wide Coverage of Models Y Y
23 Strong Diagnostic Y Y
24 Remote Service Y Y
25 Online Information Y Y
26 Online Help Y Y
27 One-click Upgrade Y Y


How to Register and Active Launch X431 Pro Mini?

User registration

Tap “Login” on the upper right corner of the main menu screen:

If you are a new user, tap “New Registration”. See below picture.



Note: To obtain better service, you need to provide real information.
Create App account: fill in the information in each field and then tap “Register”, a screen similar to the following will appear:



Activate the VCI module:

In the above figure, input the Serial Number and Activation Code, which can be found in the password envelope.



Note: To exit and activate it later, tap “Skip”. In this case, you can activate your connector by tapping “Activate Connector” in “Personal Center”.
Tap “Activate”, a dialog box pops up saying congratulations! You have successfully completed your registration; the next step is to download the diagnostic software

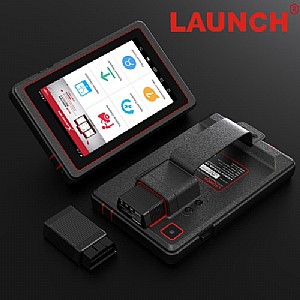

Launch X431 PRO MINI whole set: X-431 PRO MINI is mainly composed of an X-431 PRO MINI handset, and a DBSCar II VCI module.

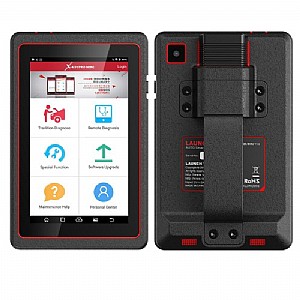

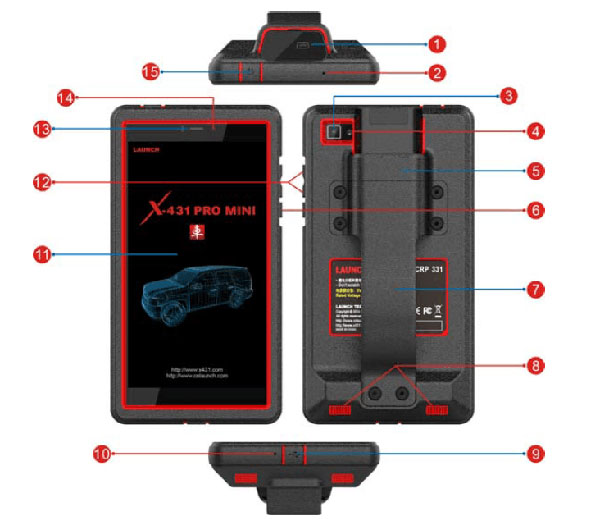

Launch X431 Pro Mini Handset

1 VCI module
2 Reset hole
3 Rear camera
4 Camera flash

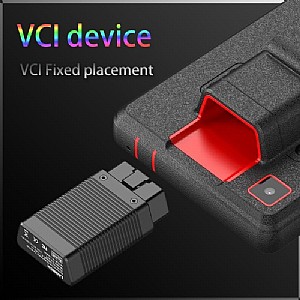

5 Slot for VCI module For housing the VCI module.
6 POWER/Screen lock key In Off mode, press it to turn X-431 PRO MINI on; In On mode, turn X-431 PRO MINI off with long press or lock screen with short press.
7 Carry strap
8 Air intake vent
9 USB/Charging port To connect to the power adaptor for charging.
10 Microphone
11 LCD screen
12 VOLUME +/- Key  To adjust the volume. To print the screen, hold and press the POWER and VOLUME – key until a snapshot pops up on the screen.
The captured snapshot is saved in the “Screenshots” folder.
13 Speaker
14 Front camera
15 Earphone Jack



Launch X431 Pro Mini Reviews:

Package came fast.Called the customers service for TECH support and I was asked to offer them the serial number, country and language I would be needed for using the tool.after activation and downloading the sofware, found it is really a multi-function device with a wide car coverage list.I applied it to my Porsche, and it accurately solved the oil indicator and cleared the DTC. I also used it to troubleshoot problems of my wife’s AUDI,couple of problems was found and fixed without issues.A good unit indeed.The seller was fairly supportive and the product good as well,I bet this product can at least save me $2000 plus time and labor per year. Highly recommend.

Launch X431 Pro Mini FAQ:

Question 1: Can this scanner program a new key?
Answer 1: Yes, this diagnostic tool can program a new key

Question 2: The caption says one year update and the deion says two years. Most other sellers have two years of free updates. Which is offered here?
Answer 2: Dear sir, as for this diagnostic tool, we offer 2 years free update .

Question 3: Does this read obd 1 cars?
Answer 3: yes, it can compatible with obd1, there are some old connectors to fit obd1. and it covers many vehicles: BMW, Benz, GM, USA Ford, Chrysler, VW, Porsch, Toyota, Volvo, Audi, Acura, Changan, Daweoo, Gaz, Hafei, Huachen, Jiao, Lexus, Xiali, Xinkai, Fiat, Holden, Maruti, Opel, Peugeot, Saab, Ssangyong, Tata, Changhe, Flyer, GMSA, Infiniti, Mahindra, Perodua, Proton, Qirui, Tlisuzu, Zhongshun, EOBD2, Euroford, Jagar, Renault, Smart, Sprinter, VAZ, Changcheng, Dacia, Ford, HaoQing, Jinlong, Liuwei, Rover, ZhongTai, ZhongXing, Bxfiat, HM, Isuzu, Jacty, JPIsuzu, Mazda, Seat, Skoda, Suzuki, Daihatsu, Mitsubishi, Citroen, Hyundai, Kia, Lancia, Landrover, Nissan, Romeo, Subaru.

Question 4: How to handle when you encounter “Insufficient storage space”?
Answer 4: If this happens while downloading the diagnostic software, please proceed as follows:
1. Get your X-431 PRO MINI username and password ready. If you forgot thepassword, please dial our hotline to retrieve it with the product serial number 98539*******.
2. Reset the X-431 PRO MINI to the default factory settings (For details, please refer to Item 5 in this Chapter).
3. Tap “Settings” --> “WLAN”, choose the desired WLAN network to connect.
4. Open the browser and visit www.dbscar.com to download and install the latest App.
5. After the installation is complete, launch the application and login with your username and password.
6. Tap --> “Update” to download the diagnostic software.
Note: For new App, the software structure and storage space occupied by the vehicle softwares have been optimized so as to avoid the occurrence of insufficient storage.

Question 5: The date and time of X-431 PRO MINI cannot be set.
Answer 5: It is because Automatic date & time is set on your X-431 PRO MINI. Tap “Settings" --> “Date & time”, deselect “Automatic date & time” and then set the date and time manually. Since the diagnostic reports are saved and sorted by date, please make sure the system date and time is properly configured on this tool.

Launch X431 Pro Mini Technical Parameters:

Operating system:                       Android 5.1
Processor :                                   Quad core 1.3 GHz
Memory:                                      2 GB
Storage:                                       16GB
LCD screen:                                 6.9 inch with a resolution of 1280 x 720 pixels
Camera :                                      Front-facing 2MP camera + rear-facing 5MP camera
Battery :                                       3.7V/3000mh rechargeable polymer lithium battery
Connectivity :                              Wi-Fi: WLAN 802.11b/g/n ,Bluetooth: Bluetooth 4.1
Working temperature:                0℃ ~ 45℃
Storage temperature:                 -10℃ ~ 50℃

VCI module:

Working voltage 9 ~18V
Average working current About 85mA
Standby current About 55mA
Working temperature -10℃ ~ 55℃
Storage temperature -20℃ ~ 70℃
Relative humidity 20% ~ 90%

DBScarⅢ Adapter:

Size:                                                 69 × 40 × 18 mm
Operating voltage:                          9V DC - 18V DC
Test voltage:                                    DC12V
Typical power consumption:           ≤2W
Bluetooth distance:                         100 m
Connectivity:                                    Bluetooth + wired
Operating temperature:                  -10℃to 50℃
Red Indicator:                                  Turns red when connected to power supply;
blue Indicator:                                 Turns blue then wireless Bluetooth work;
USB work:                                        Turns green when the connector is connected to the USB cable

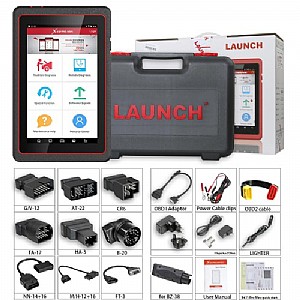

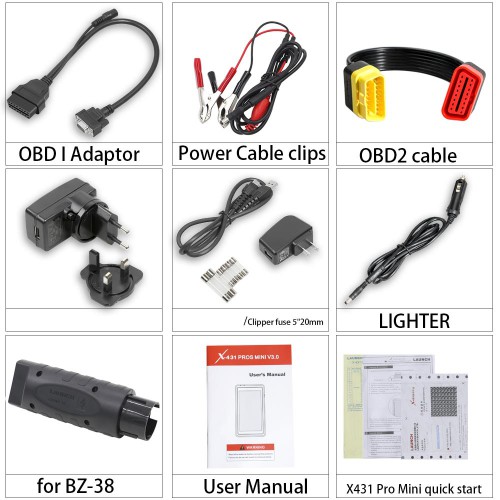

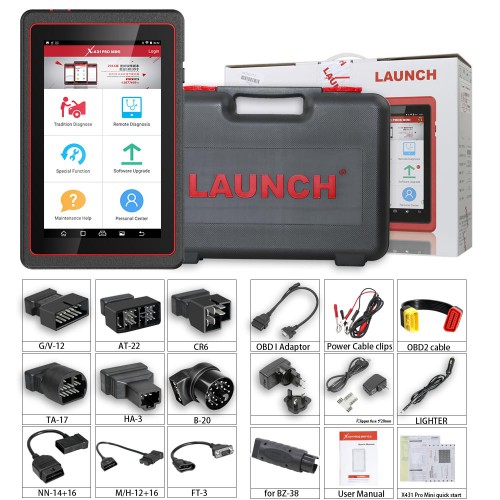

Launch X431 Pro Mini Package Includes:

1pc x X-431 PRO MINI tablet
1pc x Password envelope
1pc x VCI module (For connecting OBD II vehicles)
1pc x OBD II extension cable
1pc x OBD I adaptor (For connecting the non-16pin diagnostic connector and the VCI module)
1pc x Battery clamps cable
1pc x Power adaptors

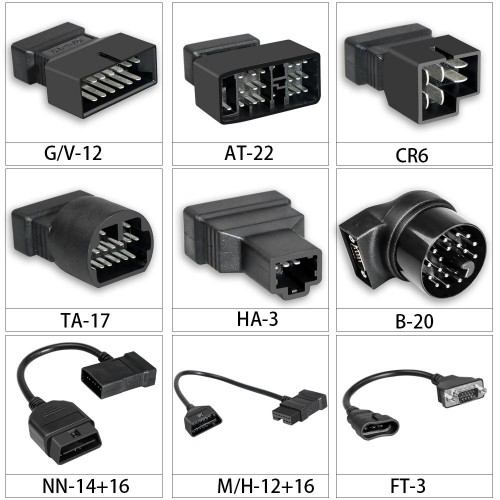

1pc x Non-16pin connectors (For connecting non-OBD II vehicle)
