Home » accessory of professional tool » EIS ELV Test Cables for Mercedes Works Together with VVDI MB BGA Tool (12 cables)

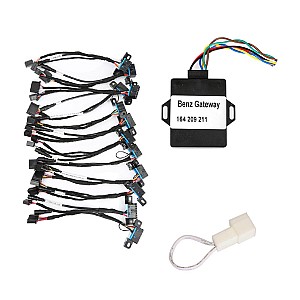

EIS ELV Test Cables for Mercedes Works Together with VVDI MB BGA Tool (12 cables)
Item No. V115
Item Weight: 0.750Kg
MOQ: 1 Unit(s)
Price:

 EIS ELV Test Cables for Mercedes Works Together with VVDI MB BGA Tool 12pcs/set
Mercedes Test Cable support:

1.CLASSE A B W169   K-line Read/Write
2.W202 W208 W210  K-line Read/Write
With this switch, users can free to read/write CPU1 and CPU2.
3.W203   K-line Read/Write
4.203 211 219 209 906 639   K-line Read/Write
5.202 208 210  K-line Read/Write
6.Gateway simulator
support 209 211 CAN Read/Write
To read/write data, please connect the gateway or gateway adapter with the test cable.
7.Gateway Adapter
The adapter above with a normal cable can successfully replace the specific cable for VVDI 146 .209 .211 to read EIS data.
(Only the gateway simulator or fast collector can read EIS data directly.)
8. 169  CAN Read/Write
9.220 210 230  K-Line Read/Write
10.639-2009 CAN Read/Write   CPU 0L01Y
11.203 639  K-Line Read/Write   1L02M  2J74Y 4J74Y,etc.
12.W906 CAN Read/Write
All gateways above can be supported to CAN read/write.

Wire sample figure:

Mercedes Test Cable-1
Mercedes Test Cable-2


1.CLASSE A B W169   K-line Read/Write

Mercedes Test Cable-3
Mercedes Test Cable-4

2.W202 W208 W210  K-line Read/Write

With this switch, users can free to read/write CPU1 and CPU2.

Mercedes Test Cable-5
Mercedes Test Cable-6
Mercedes Test Cable-7

3.W203   K-line Read/Write

Mercedes Test Cable-8
Mercedes Test Cable-9


4.203 211 219 209 906 639   K-line Read/Write

Mercedes Test Cable-10
Mercedes Test Cable-11

5.202 208 210  K-line Read/Write

Mercedes Test Cable-12
Mercedes Test Cable-13
Mercedes Test Cable-14


6.Gateway simulator

Support 209 211 CAN Read/Write
To read/write data, please connect the gateway or gateway adapter with the test cable.

Mercedes Test Cable-15

7.Gateway Adapter

The adapter above with a normal cable can successfully replace the specific cable for VVDI 146 .209 .211 to read EIS data.
(Only the gateway simulator or fast collector can read EIS data directly.)

Mercedes Test Cable-16
Mercedes Test Cable-17

8. 169  CAN Read/Write

Mercedes Test Cable-18
Mercedes Test Cable-19

9.220 210 230  K-Line Read/Write

Mercedes Test Cable-20
Mercedes Test Cable-21

10.639-2009 CAN Read/Write   CPU 0L01Y

Mercedes Test Cable-22
Mercedes Test Cable-23

11.203 639  K-Line Read/Write   1L02M  2J74Y 4J74Y,etc.

Mercedes Test Cable-24

Mercedes Test Cable-25
Mercedes Test Cable-29

12.W906 CAN Read/Write

Mercedes Test Cable-26
Mercedes Test Cable-27
Mercedes Test Cable-28


All gateways above can be supported to CAN read/write.

Package includes:

1pc x W639-2009
1pc x W906
1pc x W203  W639  K
1pc x W202 W208 W210 K
1pc x W209 W211
1pc x CGW ZGW
1pc x 4PIN ESL 169
1pc x W169
1pc x 3PIN ESL 203
1pc x W220 W215 W230 K
1pc x 5PIN ESL OLD 202 208 210
1pc x 5PIN ESL 203 211 219 209 906 639
1pc x Mercedes A164 Gateway Adapter
1pc x Gateway Adapter
