Home » Auto Diagnostic Interface » diagauto VXSCAN EL-50588 Auto Tire Pressure Monitor Sensor for 2016&2017 GM/Chevrolet Update Version for EL-50448
diagauto VXSCAN EL-50588 Auto Tire Pressure Monitor Sensor for 2016&2017 GM/Chevrolet Update Version for EL-50448
Item No. D136
Item Weight: 0.100Kg
MOQ: 1 Unit(s)
Price:

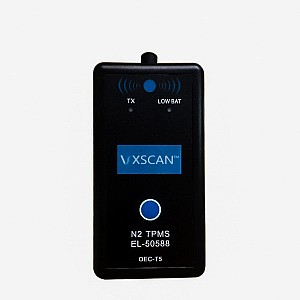

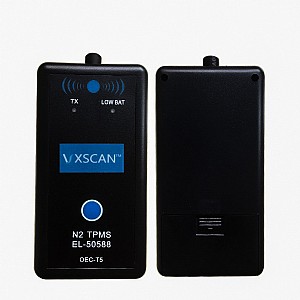

VXSCAN EL-50588 Auto Tire Pressure Monitor Sensor GM Chevrolet TPMS Relearn Tool

Top 2 reasons to get VXSCAN EL-50588:
1. EL-50588 GM CHEVROLET  TPMS Relearn Tool works on vehicles 2010 year - 2016 year , and a part of vehicles 2017 year
2.Update version for EL-50448

Note:
1. Not work on Trucks, please do not use it on GM Chevrolet Trucks
2. The package does not include the charger and battery

How to use EL-50588 TPMS Relearn Tool:
Before tire pressure monitoring system works normally propertly, the body control module will record ID information of each position in the tire pressure sensor; and do as the following methods to read the tire pressure sensor after replacing a tire or wheel speed sensor.

Step 1 - Enter leaning mode
Set the gearshift lever to "P"
Turn the ignition switch to “ON”
Enter the interface of tire pressure display by DIC
DIC shows "Press Set / Ctrl to re-learn"
Press “Set / Ctrl”
The turn signal lightes for 3 seconds and the horn beeps sound twice to enter the learning mode

Step 2 - Read tire pressure sensor information of front-left wheel
VXSCAN EL-50588 TPMS Tool antenna up against the valve core position & close to the rim of the tire sidewall
starts the switch of El-50588 TPMS tool,when the horn bleeps once,it is successful to read the tire pressure sensor information

Step 3 - Same method to read other tire pressure information
Follow the instuction above to read tire pussure of the front-right, rear-right, rear-left wheels.
Turn signals lightes for 3 seconds and the horn bleeps twice when the learning completes.


VXSCAN EL 50588 Package includes:

1pc x EL-50588 GM Chevrolet TPMS Relearn Tool
