FVDI J2534 Diagnostic Tool for Ford & Mazda Support Online Module Programming FVDI J2534 is a vehicle communication interface device that full compatible with SAE J2534-1 and partly compatible with SAE J2534-2.It supports most of vehicle communication protocols and can be used as PassThru device for many dealer level diagnostic software.And it can be used as a ELM327 device also,support most of ELM327 software. Top 7 Reasons to Get FVDI J2534: 1. High speed host communication.(3 Mbps) 2. Stable host communication.(with RTS/CTS flow control) 3. Automatically register software and no virtual machine needed. 4. Online software update and keep software latest always. 5. Online fireware update. 6. USB 802.11 selectable host communication. 7. Support ELM327 software by one device. SVCI J2534 Support Softwares:
J2534 Ford IDS V116 Mazda IDS V116 Toyota TIS V13.00.022 Land Rover/Jaguar SDD2 V154.01
SVCI J2534 Support ELM327 Softwares:
ELMconfig Forscan FOCCCUS FF2 FVDI J2534 Comparison Table with other Devices
FVDI J2534 VS. Ford/Mazda IDS:
Functions
FVDI J2534
Genuine VCM 2
Other Devices
Comments
Automatically
startup without license
√
×
×
No virtual
machine needed
√
√
×
Support online
Modules Programming
√
√
×
Support online
PATS/RKE learning
√
√
×
Support SAE
J1850 PWM 83.3K baud rate
√
√
×
Support FEPS
18V programming voltage
√
√
√
Support FEPS
5-20V adjustable voltage
√
√
×
Support
Reading Programming voltage
√
√
×
Support EEC-V
multiple items data logger
√
√
×
MY 1994-2000
Ford
Support PTEC
multiple items data logger
√
√
√
MY 2000-2006
Ford
Support SAE
J1850 module programming
√
×
×
MY 1995-2006
Ford
Support power
balance performance test
√
√
×
MY 1995-2006
Ford
Support CANBUS
module programming
√
√
√
MY 2006-2018
Ford
Support online
software update
√
×
×
Keep software
latest
FVDI J2534 VS. Toyota TIS:
FVDI J2534
Genuine OTC
Other Devices
Comments
Automatically
startup without license
●
No virtual
machine needed
●
●
●
Support
ISO15765 vehicle diagnostic
●
●
●
Support
ISO14230 vehicle diagnostic
●
●
MY1995~2006
Toyota
Support online
software update
●
Keep software
latest
Calculate
smart system reset PIN for free
●
FVDI J2534 Support Protocols: ISO9141 IS014230 J1850 VPW J1850 PWM(Ford SCP) IS011898 HS(500K BPS) IS011898 MS(125K BPS) IS015765 HS(500K BPS) IS015765 MS(125K BPS) FEPS(Flash EEPROM Program Signal) KWP1281 J2819(TP2.0) FVDI J2534 Specifications: L*W*H: 76mm*54mm*22mm Environmental: -20℃-45℃(-4℉-113℉) at 15% to 85% Voltage Requirements: 8-32V DC,10 mA(max),0.6W @ 12V DC non-condensing Vehicle Connection: Molded DLC3(OBDII-16)

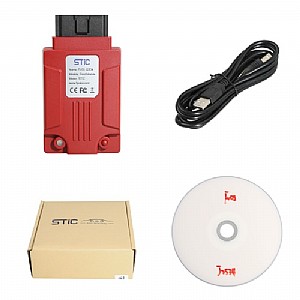

LED: Work normal: Green LED blinks continuously slowly Firmware updating: Red LED blinks continuously quickly PS Push Switch: Pressed: works as ELM327 mode Released: works as J2534 mode Package List: 1set x FVDI J2534
