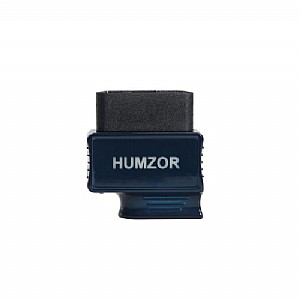

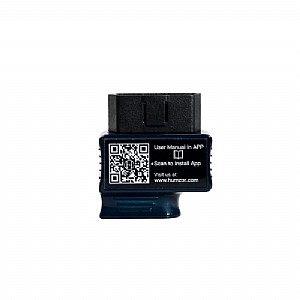

HUMZOR NEXZSCAN New Generation Code Reader
NexzScan New Generation Code Reader is Coming!
With NexzScan and your smartphone in hand, you can master the Check Engine Light.
High Cost-effective Device: Compared with the handheld tools and other scanners, NexzScan is designed with the character of higher cost-effective, more customized and user-friendly, saving you both time and money.
Enhanced OBD Diagnosis: Fully covers OBD diagnosis Mode 01-0A, not only includes read & clear codes, freeze frame, but O2 Sensor, Smog Check, Battery Test, etc. are added.

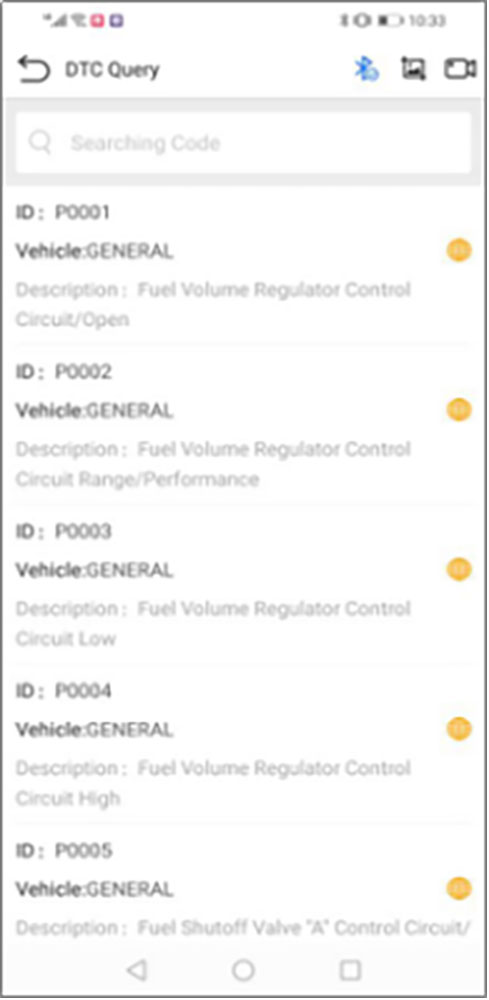

Powerful Database: Exclusively provides more than 40，000 kinds DTC definition & vehicle information query, greatly exceeds the similar products in market.

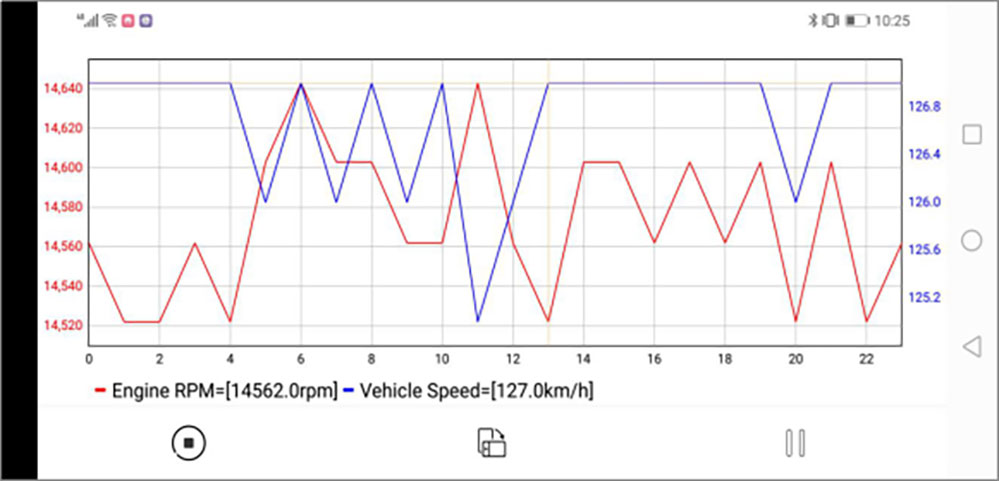

Customized Live Data: Diversified live data display method: digital, dashboard and graph display. Meanwhile, you can merge multi-parameters in one graph and see how they affect each other, fully provide you with clear and efficient scanning result.
Detailed DTC Report: For each DTC, the code definition as well as possible causes are listed clearly by simple and easy-to-understand explanation instead of confusing terms.
One-Key Update in App: No PC, no USB, no SD card are needed. Click the upgrade information and update it into the latest version within the App in time.
NEXZSCAN Product Features
iOS/Android System Available: Powerfully supports iOS and Android systems.
Bluetooth Connection: High speed Bluetooth 4.2 connection method.
Wide Vehicle Coverage: Works on any gasoline car (Japan, Canada, US, EU, etc.)with standard OBD2 DLC after 2000 till now (OBD2, CAN).
Support all Standard OBD2 Protocols: SAE_J1850(PWM,VPW), ISO_9141-2, ISO_14230-4(KWP, KWP-FAST), ISO_15765-4(CAN, CAN-B,CAN-C,CAN-D), SAE_J1939(CAN).
Supports Multi ECU Code Reading: from7E8 to 7EF（including Engine, Transmission and other control modules）.
Clear and Visualized User Interface: provides you with easy-to-operate and comfortable experience.
Elegant Appearance: shells with environmental protection materials, designed with the technology of anti-drop and dust-proof.
LED indicator: real-time obtaining test status, data interaction status and Bluetooth connection status.
NEXZSCAN Function Deion

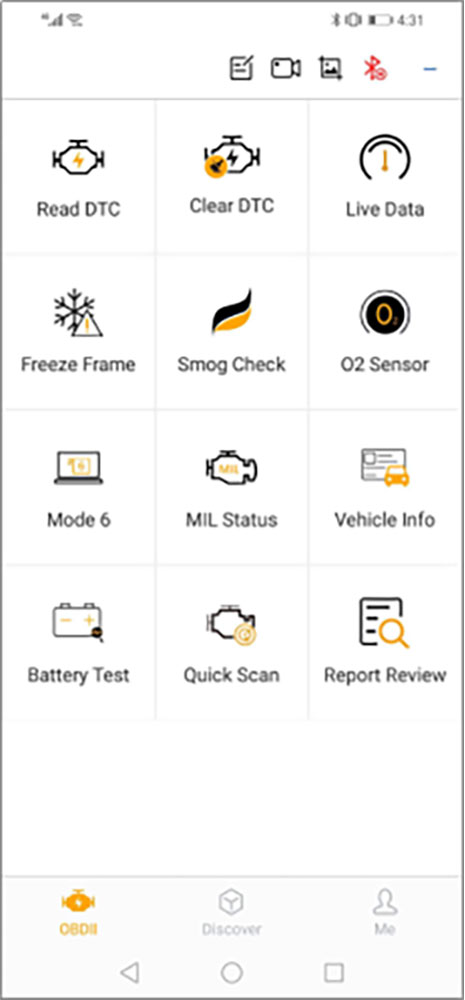

OBD Diagnosis

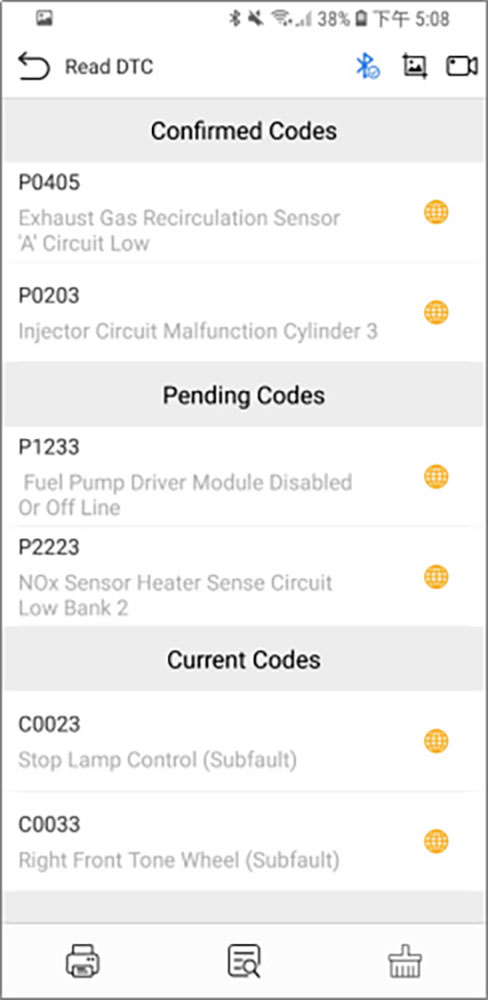

Read and Clear Codes: Read and clear engine codes. Stored, Pending and Permanent for all makes.
Freeze Frame: A snapshot of the vehicle when the code is stored.

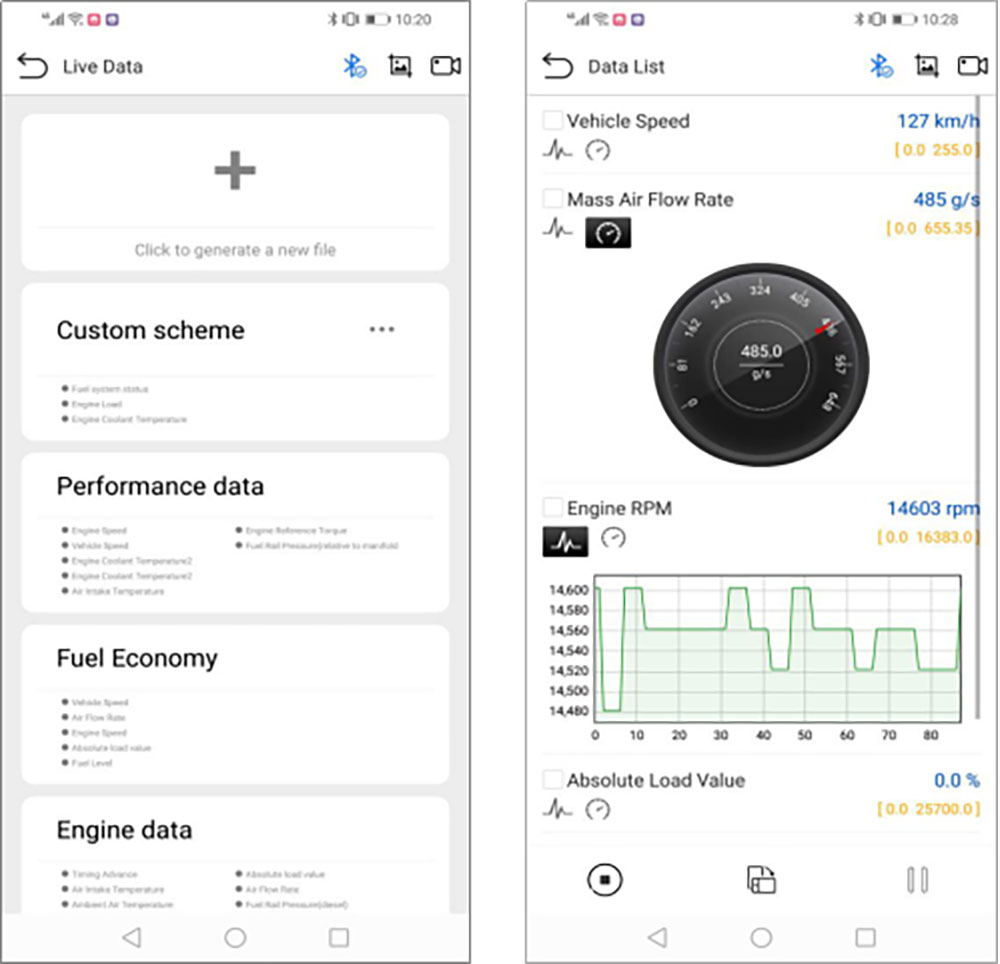

Live Data: DIY diversified PID display methods and multi-parameters comparison.
O2 Sensor: Check the vehicle O2 sensor values.
Smog Check: Check if the vehicle is ready for a smog or emissions test.
MIL Status: Diagnose the car when the Malfunction Indicator Lamp is on.
Mode 6: Advanced test results (like misfire counts) for on-board diagnostic system monitors.
Battery Test: Show battery voltage and comment battery status.

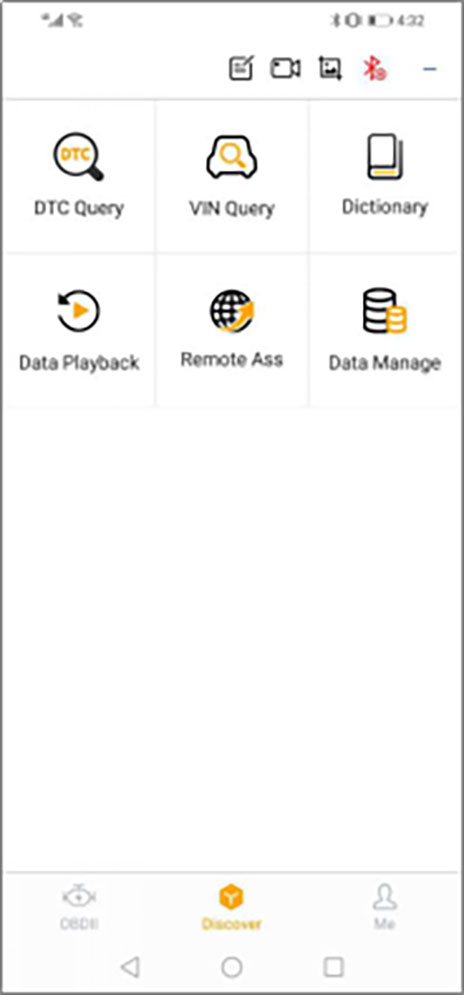

Discover：
Created with powerful technical support--Remote Assistance, Data Manage, Data Playback module allow you get timely help.
5.Specifications
Communication Bluetooth 4.2
Dimensions 53mm*47mm*25mm
Support Protocols ISO 9141-2，ISO14230-4KWP, ISO 15765-4, SAE J1850-VPW, SAE J1850-PWM
Operating System iOS & Android phone
Operating Current 0.24A
Minimum Starting Voltage 7.9V
Maximum Operating Voltage 30V
Operating Temperature –20℃~40℃
Storage Temperature –30℃~70℃

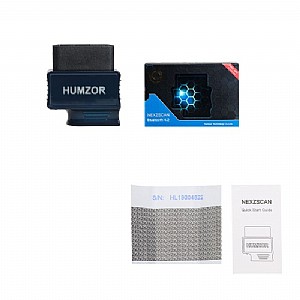

Package includes:1pc x HUMZOR NEXZSCAN New Generation Code Reader
