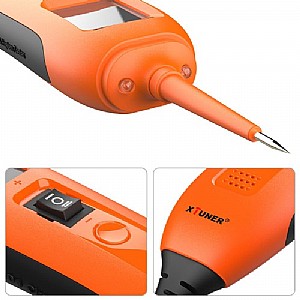

XTUNER PT101 12V/24V Power Probe Circuit Tester DC/AC Electrical System Diagnostic Tool Voltage Current Test Car battery Tester

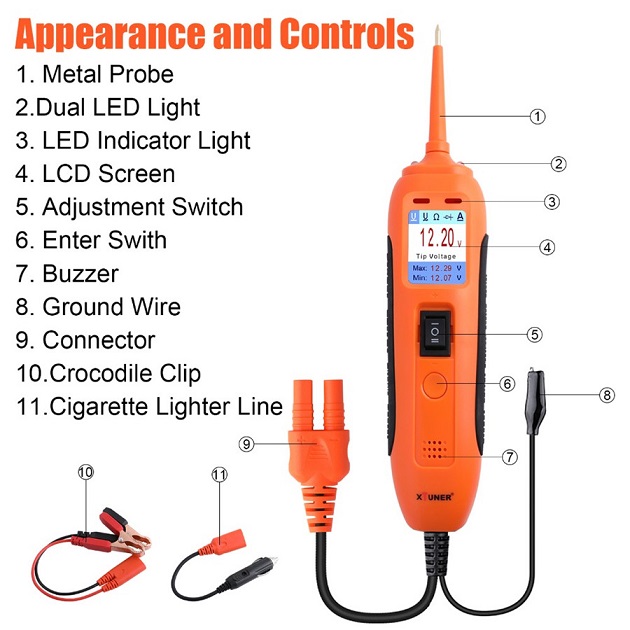

XTUNER PT101 Features:
Protection design for safety
Read results on the LCD screen
Read results on the LCD screen
Circuit tester with multi-function
Four diagnostic modes for 12v ・ 24v
Support multiple vehicles and after-sales warranty
Large and colorful LCD screen, easy to navigate the user menu
Supply power and ground for functional component test
AC-RMS, AC Peak to peak, frequency and pulse width for signal test
Digital voltmeter with min/max voltage capturing
Displays up to 60 volts and resolution of 0.01 volt
8 amp circuit breaker protection, automatically reset, no button to push
20 foot power lead and extra 20FT extension cable
Ergonomic housing design with rugged and water resistant specification

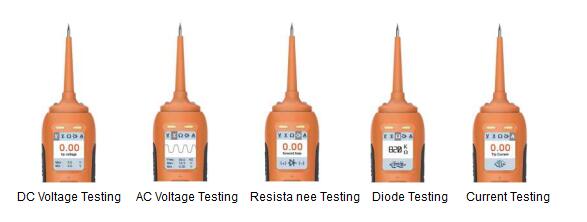

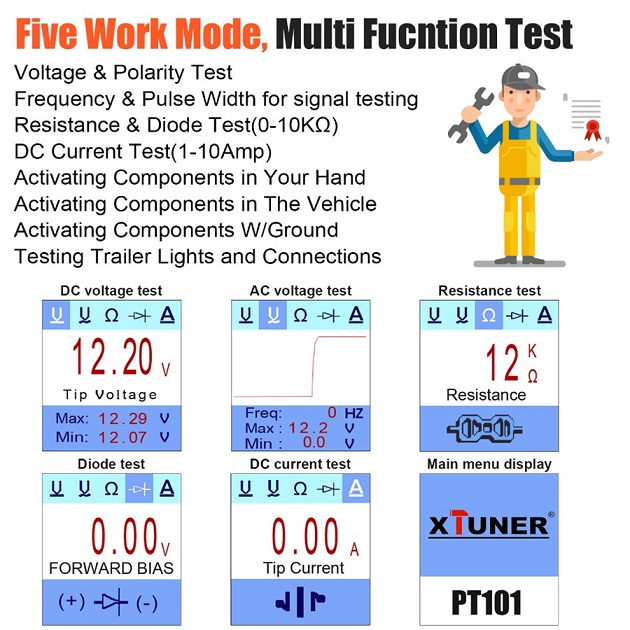

XTUNER PT101 Five Work Mode:

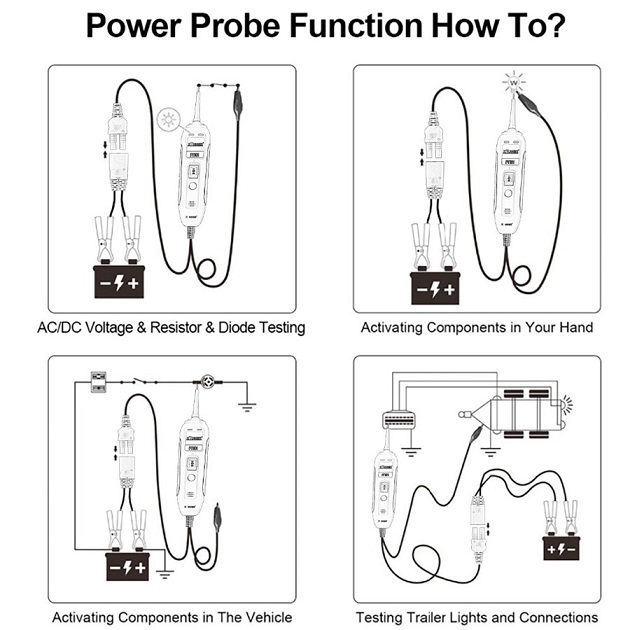

How to use XTUNER PT101 on Power Probe Function?
XTUNER PT101 Parameters:
| Item |
Parameters |
| DC Voltage Range |
0-40V |
| Resistance Range |
0 Ohms to IM Ohms |
| Rating Current |
1-8Amp |
| Frequency Response Of Tone |
40Hz to 20KHz |
| Test Standard |
-100% current: Hold > I hour
-500% current: trip in one hour
-200% current: trip in 3-30 seconds
-300% cur re nt: trip in 0.5—4.0 seconds |

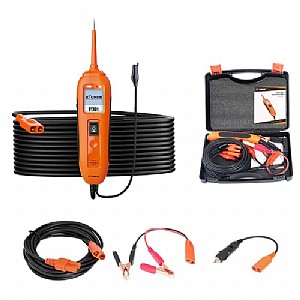

XTUNER PT101 Package includes:
1pc x User Manual
1pc xCigarette Lighter Adapter
1pc x Battery Hookup Clips
1pc x Probe Tip
1pc x Extension Cable(20 ft)
1pc x Rugged Molded Case
1pc x Power Assist Cable
