XTOOL KS-1 Smart Key Emulator for Toyota Lexus All Keys Lost No Need Disassembly Work with X100 PAD2/PAD3
Item No. V185
Item Weight: 0.100Kg
MOQ: 1 Unit(s)
Price:

XTOOL KS-1 Smart Key Emulator for Toyota Lexus All Keys Lost Work with X100 PAD2/PAD3

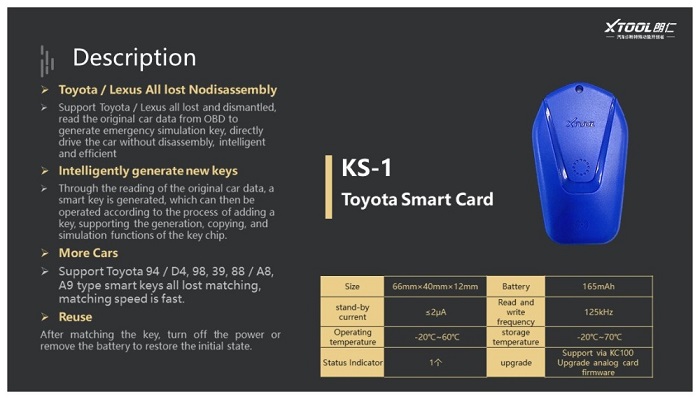

Xtool KS-1 Deion:

KS-1 The five-in-one simulation card can eliminate the need to disassemble the smart box and other modules.

As long as the original car data is read from the OBD to generate the simulation card, the ignition switch can be turned on to realize the function of clearing and adding the smart key.

Highlights of Xtool KS-1:

1.Toyota/Lexus All Lost No Need Disassembly

2. Support Toyota/Lexus all key lost and dismantled,read the original car data from OBD to generate emergency simulation key,directly drive the car without disassemble, intelligent and efficient

3. Intelligently Generate New Keys

4. Through reading of the original car data, a smart key is generated, which can be operated according to the process of adding a key.
Supporting generation,copying and simulation functions of the key chip

5. Support Toyota 94 / D4, 98, 39, 88 / A8, A9 type smart key all-key-lost matching. Matching speed is fast

6. The simulation card can be reused. After matching the key, turn off the power or remove the battery to restore the initial state.

7. Functions also includes generation, copy and simulation of key chip.

Compatible With Those Devices:

X100 PAD2 PRO
X100 PAD3
XTOOL X100 PAD2 (Need Buy KC100)
A80 (Need Buy KC100)
PS90 (Need Buy KC100)
H6 (Need Buy KC100)
X100 PAD Elite (Need Buy KC100)

Xtool KS-1 Key Type Support List: (Keep Updating)

NO. Vehicle Year Key Type Support or Not Remarks
1 RAV4 2015 88 Yes
2 Alphard 2013 94 Yes
3 Alphard 2015 A9 Yes
4 Previa 2008 94 Yes
5 Crown 2010 98 Yes
6 Crown 2015 A8 Yes
7 Crown 2016 A8 No After 2016,Toyota Crown is not supported
8 Prado 2011 98 Yes
9 Previa 2013 94 Yes
10 Reiz 2011 98 Yes
11 Innova   39 Yes The car is being tested for the Indian Tango

Xtool KS-1 Specifications:

Parameter Index
Battery CR2025 3V 165mAh
Standby current Standby current≤2μA
Reading and writing frequency 125kHz
Status Indicator Lamp 1pc (mode: turn on and light up for 2s and then extinguish; Flicker, flash, 0.5s/ time when writing or reading)
Update The simulation card firmware can be updated  with KC100
Working temperature -20℃~60℃
Storage temperature -20℃~70℃
Structure size 66mm*40mm*12mm

Package List

1pc x KS-1 Emulator
