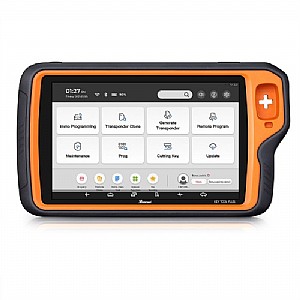

Xhorse VVDI Key Tool Plus All-In-One Automotive Solution for Locksmith

Highlights:

1. VVDI Key Tool Plus provides an all-in-one security solution for locksmiths. Much easier to complete various automotive programming anywhere, no need to take your laptop, mobile phone.
2. Support IMMO programming for luxury cars like BMW, BENZ, AUDI, and VW etc.
3. Available to control the key cutting machines developed by Xhorse. Greatly saving cost and facilitating the work process. Bind with Xhorse key cutting machine to get one free BGA token everyday.
4. Advanced Version with Free Update Online
5. Cover all functions of VAG OBD Helper.
6. ID48 96bit and read MB Key password online will need token, but both can read xhorse bonus points. Read Xhorse bonus points for copy 48 96 bit ( 100 points ) and Mercedes calcuation ( 200 points ).
7. The most advanced application processor of VVDI Key Tool Plus, with integrated Bluetooth, FM, WLAN, and GPS modules, is a highly integrated baseband platform incorporating both modem and application processing subsystems to enable the best and most convenient connectivity solution. With this super processor, the enhanced overall quality is achieved for simultaneous voice, data, and audio/video transmission on the device.

Features:

1. All-In-One Automotive Solution for Locksmith
2. Powerful Hardware,Super Advanced Processor
3. IMMO Programming For Luxury Cars
4. Prog Function, IMMO Data Tool
5. Available to Control The Key Cutting Machines

VVDI KEY TOOL PLUS PAD Basic Functions:

Generate Remotes and Smart keys
Renew (unlock) remotes
Remotes clone
Program and Immo Transponder
IC/ID Clone
Frequency Detection
Transponder detection, clone, and generating
Support for Jaguar, Land Rover, Porsche, Volvo, Mitsubishi, and others
Service light reset
Key cutting machine control
Common vehicle IMMO programming

Other Functions:

DOIP
CAN-FD
CAN and K protocol switch pin
Chip pin detection
Toyota Smart key programming without simulator
Long-distance IMMO collection
Built-in OBD matrix switch
Radiofrequency simulator
Smart key simulator
Integrated key identification coil
BENZ infrared reading head

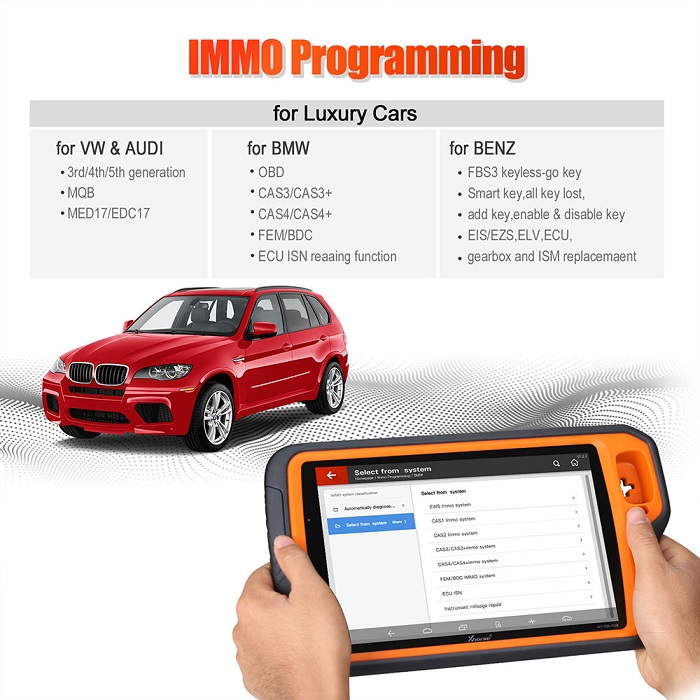

IMMO Programming for Luxury Cars

VW&AUDI: 3rd/4th/5th generation, MQB, MED17/EDC17
BMW: OBD, CAS3/CAS3+, CAS4/CAS4+, FEM/BDC, ECU ISN reading function
BENZ: FBS3 keyless-go key, Smart key, all key lost, add key, enable & disable key, EIS/EZS, ELV, ECU, gearbox and ISM replacement
Common Car Brands - Toyota, Honda, Mazda, Ford, etc.

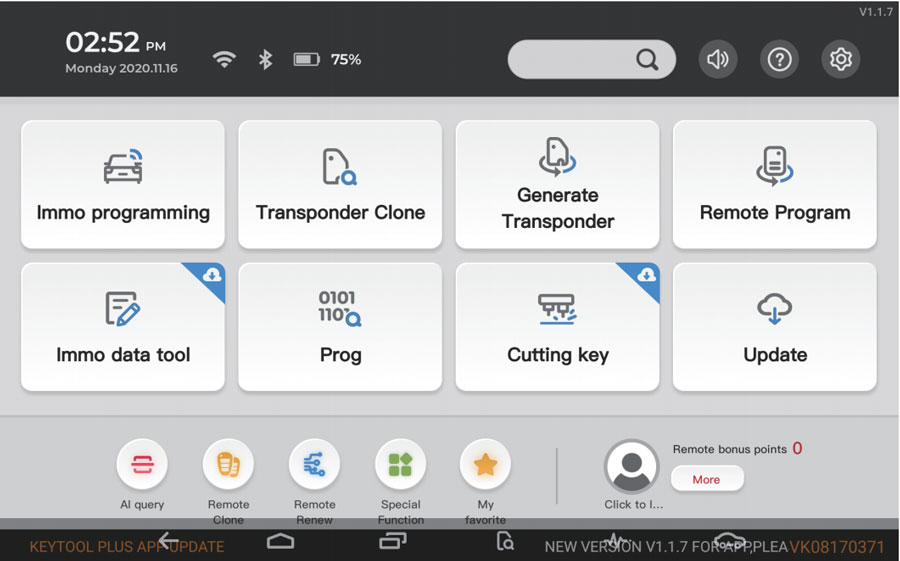

Key Tool Plus supports over 20,000 car models worldwide. We can select the car brands and car models on the immo programming interface. On this smart platform, we can easily find the car models we need by brand area, brand name, and A-Z word search.

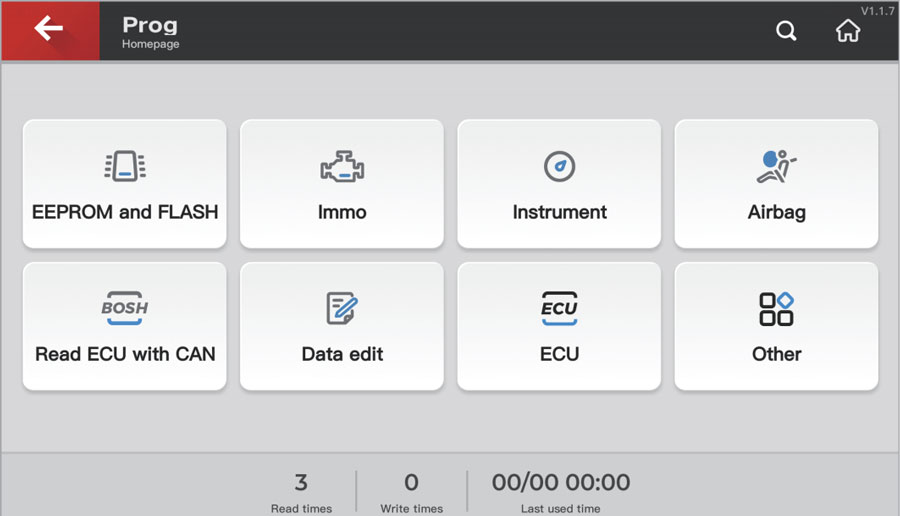

Prog Function

Key Tool Plus supports reading and writing common modules and chips. It covers "EEPROM and FLASH", "IMMO", "Instrument", "Airbag", "Read ECU with CAN" and "ECU", etc.

Support EEPROM reading and writing: support reading & writing most types of transponders in the market.
Support BMW immo module programming covering CAS3, CAS3+, CAS4, CAS4+, BDC, FRM, and FEM.
Support Land Rover RFA module reading and immo programming.
Support Porsche BCM programming.
Support read ECU with CAN on AUDI, BMW, and VOLKSWAGEN.
Support Instrument programming on HONDA, KIA, and HYUNDAI.

Note: To complete certain functions, users need to connect KEY TOOL PLUS to the specific adapters and get the required model prompt on the interface. The function is only effective on the advanced edition.)

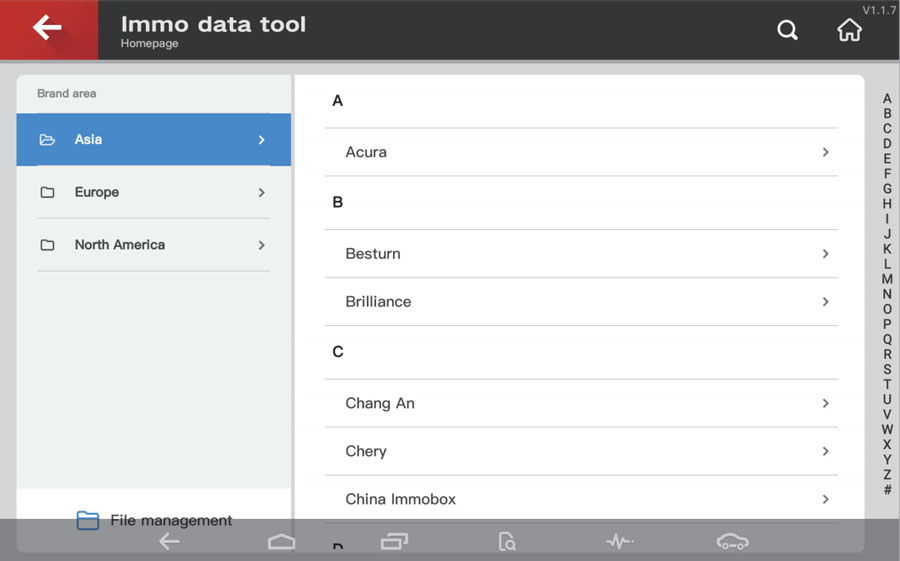

IMMO Data Tool (File Make Key)

Key programming and certain settings can't be finished via OBD port on some car models due to their immobilizer protection system. Through a professional programming method - FILE MAKE KEY, the problem can be easily solved.

[ File make key, to generate a car key via a data file. Users need to use the specific device to read the immo data, and generate a boot transponder to directly start the car, no need to match the original car.(Users may need to rewrite the data to the immo box when doing the programming process on some car models.) ]

Xhorse Key Tool Plus supports File Make Key function for common car models and motorcycles. we can easily find the car models we need by brand area, brand name, and A-Z word search.

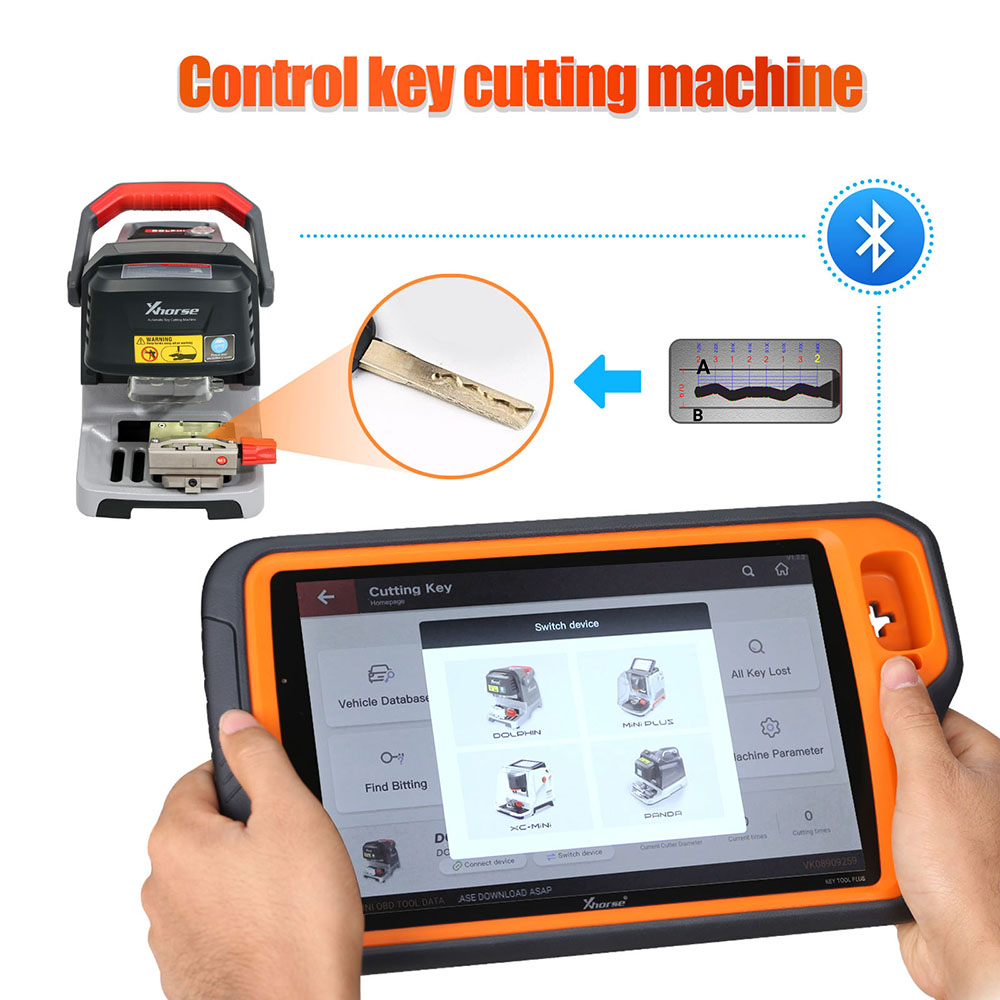

Control Xhorse Key Cutting Machines

Key Tool Plus is available to control the Xhorse key cutting machines(CONDOR, DOLPHIN, and PANDA), to perfectly work as an operation screen. By using KEY TOOL PLUS, completely free your mobile phones.

CPU: 8-core 2GHz (4xCortex-A53 up to 2.3Ghz,4xCortex-A53 up to 1.8Ghz)
RAM+ROM: 4G+128G
Operation System: Android 9.0
Screen Size: 10.1" HD Anti-glare; Anti-fingerprint,Resolution up to FHD+ (2,400*1,080)
Rear HD Camera: 13.0MP
Battery Capacity: 10000mAh
Charging: 30W Super Fast Charge
Bluetooth: 5.0 Bluetooth
WIFI: 2.4G/5G

The most advanced application processor of KEY TOOL PLUS, with integrated Bluetooth, FM, WLAN, and GPS modules, is a highly integrated baseband platform incorporating both modem and application processing subsystems to enable the best and most convenient connectivity solution. With this super processor, the enhanced overall quality is achieved for simultaneous voice, data, and audio/video transmission on the device.

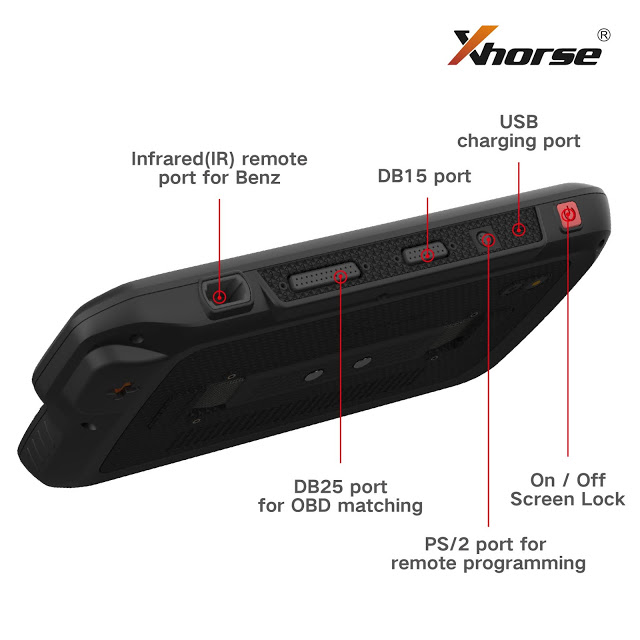

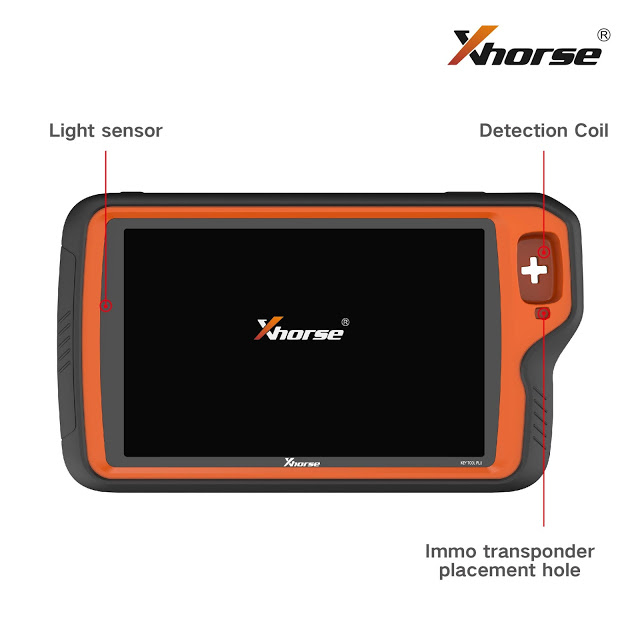

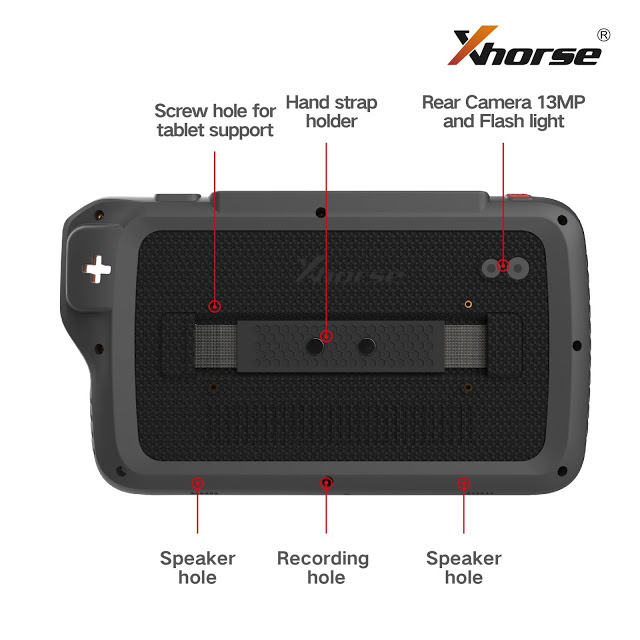

Key Tool Plus Ports Introduction:

Light sensor: detect the brightness in the surrounding environment

Detection coil (including 125K low, 13.56M Medium, 300-900M high frequency)

•  Support reading, writing, and cloning common immo transponders
•  Support reading common ID transponders
•  Support reading common IC transponders
•  Support frequency detection of common vehicle remotes

Immo transponder placement hole for vehicle immo transponders

Benz Infrared (IR) port: support IR read Benz FBS3 & FBS4 smart key and support Benz IR reader

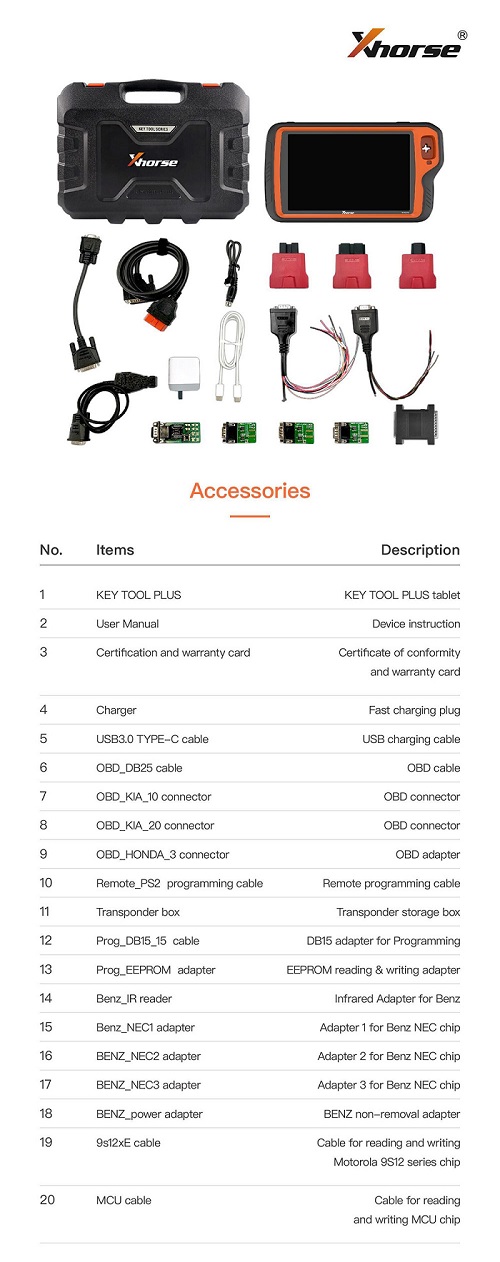

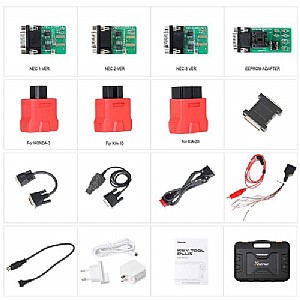

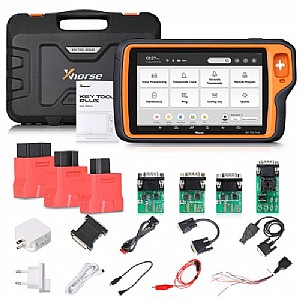

Package List:
