Home » Maxi Autel Products » Original Autel XP400 PRO Key and Chip Programmer for Autel IM508/ IM608
Original Autel XP400 PRO Key and Chip Programmer for Autel IM508/ IM608
Item No. X27
Item Weight: 2.400Kg
MOQ: 1 Unit(s)
Price:

Autel XP400 PRO Key and Chip Programmer for IM508/ IM608

Highlights of Autel XP400 Pro:

1. XP400 Pro is an Advanced All-in-One Key Programmer
2. One Year Free Update Online on Autel Official Website
3. Compatible with Autel IM508 and Autel IM608, Also IM100 and IM600 as well
(Notice: XP400Pro is compatible with IM100 / IM600. The only thing the IM100 and IM600 will not have when used with XP400Pro is the 4 channel Labscope software and AutoAuth)
4.Enables Programming of Infrared Keys for Mercedes Vehicles and IC Chip Keys on Late Model Hyundai Kia Vehicles
5. Supports Key Renewal on 11 Key Types with Additional Adapters - IMKPA, Key Programming Accessories Kit
6. Performs EEPROM-data Functions Needed for European Vehicles
7.Supports Data Read/Write of 3,000 Plus Chip Types (inc. EEPROM, engine ECU, MCU, IMMO ECU)

Please note that the product does NOT support Read/Write IC Card function. The "IC Card Induction Area" was also removed from XP400 Pro.


What Autel X400 Pro Supported?

XP400 Pro Supports Data Read/Write of 3,000 Plus Chip Types (inc. EEPROM, engine ECU, MCU, IMMO ECU)

1. Expanded EEPROM functions for more component access
2. 170+ types Odometer component reading functions
3. 180+ Immobilizer ECU component types
4. 40+ Engine ECU component types
5. 2000+ MCU component types
6. 440+ EEPROM component types

Detail List Please Check: Autel XP400 PRO Use Manual

Advanced Key Programming Vehicle Coverage when combined with XP400PRO:

Benz
* One-tap Key Programming via OBD
* 3rd Generation IMMO CAN-Line/ K-Line Add Key, All Key Lost

BMW
* Smart IMMO Programming (support EWS3/ 4, CAS 1/ 2/ 3/ 4, FEM/ BDC)
* Add Key/All Key Lost

Volkswagen/ Audi
* One-tap Online Programming
* Add Key/All Key Lost Via OBD for 2013 - 2020 Models

GM
* Read IMMO Password, Add Key/ All Key Lost up to 2020

Ford
* Add Key/All Key Lost (No PIN Needed) up to 2020

Mazda
* Add Key/All Key Lost (No PIN Needed) up to 2020 FCA
* Read IMMO Password, Add Key/All Key Lost up to 2020

Renault
* Add Key/All Key Lost (No PIN Needed) up to 2020

LandRover/Jaguar
*Add Key/All Key Lost up to 2019

Volvo
* Semi-smart Key Learning via OBD up to 2018
* Smart/Blade/Fobik Key Learning via Dump

Powerful IMMO Functions:

1. Auto Detect Make/ Model/ Year/ System
2. Read PIN (All Key Lost)
3. Key Learning
4. IMMO ECU Reset/Adaption
5. IMMO ECU Refresh/Coding
6. Remote Learning
7. AUDI Q5/ A4/A5 2015-2017 Key Learning
8. VW MQB Key Learning
9. BMW FEM/BDC Key Learning and Adaption
10. BMW CAS4 Key Learning and Adaption
11. Mercedes Key Learning
12. 2015-2018 Land Rover & Jaguar write key via dump
13. Volvo Smart Key Learning/ knob-style smart key

Advanced Programming Functions:

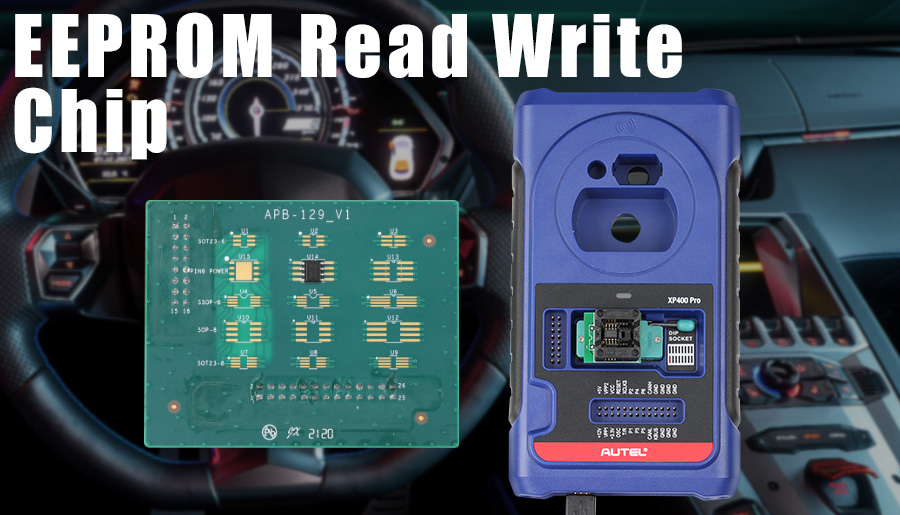

1. EEPROM Read/Write
2. MCU Read/Write
3. Key Programming
4. Mercedes Key Read/Write
5. Remote Frequency Detect



 Comparison Table for XP400 Pro, XP400 and Xhorse VVDI Prog:


Feature X400 Pro XP400 Xhorse VVDI Prog
EEPROM read/ write 445 different chip types newly added support (AM29FXXX seriesMB29FXXX series) 330 chip types 429 different chip types
MCU read/ write 2067 chip types 1541 chip types 1758 different chip types
Engine ECU read/ write 41 chip types add write support for SIMTEC76(AM29F800BB)_WRITE 40 chip types Engin ECU read (74 types)
Immoblizer ECU read/ write 41 chip types add write support for SIMTEC76(AM29F800BB)_WRITE 40 chip types Engin ECU read (74 types)
Odometer read/ write 181 chip types 168 chip types 171 chip types
Airbag read/ write read odometer module 171 types (update in July) read odometer module 9 types read odometer module 171 types
Frequency detection read airbag module 5 types read airbag module 5 types read airbag module 54 types
Key read/ write 315/ 433/ 868MHz 315/ 433/ 868MHz N/A
Unlock key support 11 key types (Audi/ BMW) N/A 6 key types
Write key via dump Mitsubishi, suzuki, fiat, landrover, Jaguar Mitsubishi, suzuki, fiat, landrover, Jaguar Support 40+ vehicle makers
Easy to use/ stability 1.Stability of key read/ write, chip read/ write, IR key read/ write are greately enchanced.
2.menus are too vague and can't select intuitively
3.with high-definiton wiring diagrams (not sufficiently covered)
1. menus are too value and can't select intuitively
2. with high-definiton wiring diagrams (not sufficiently covered)
1.menus are clear and easy to use
2.with high-definiton wiring diagrams (sufficiently covered)
3.high stability of chip read/ write




XP400Pro Adds Support for Following Chips:

EEPROM-->>AMD-->>AM29FXXX series chip
EEPROM-->> FUJITSU-->> MB29FXXX series chip
EEPROM-->> ST-->> M29FXXX series chip
Engine control module-->> ST-->> M29FXXX series chip
IMMO-->> BENZ-->> ESL_W209_W906(Motorola) read/write/erase function
IMMO-->> BMW-->>EWS3 module read/write function
REMOTE_RENEW (renew key)-->> NEC-->> V51 and V5 chip read/write/erase

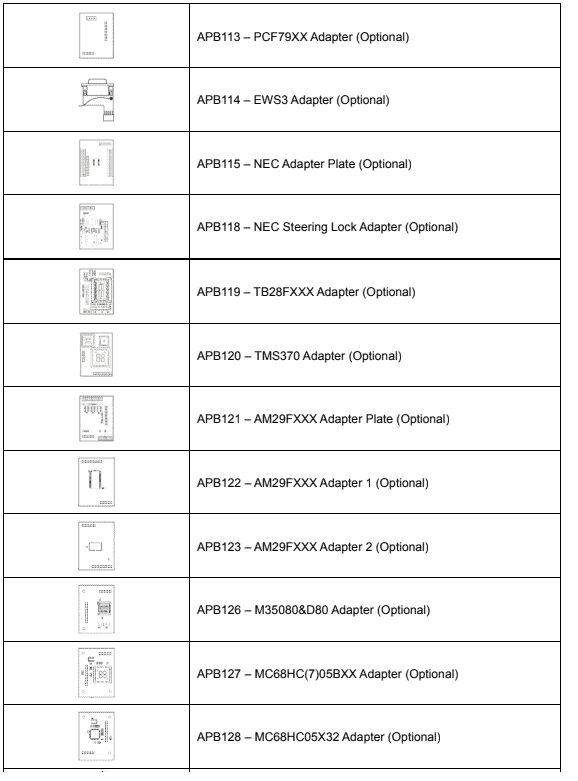

XP400 Pro Adds Support for Following IMKPA Accessories
(Need to Buy IMKPA Accessories Separately, please contact Whatsapp: +86-13995696053)

APB113 PCF79XX adaptor board
APB114 EWS3 adaptor board
APB115 NEC adapter board
APB118 NEC ELV adaptor board
APB119 TB28FXXX adaptor board
APB120 TMS370 adaptor board
APB121 AM29FXXX adapter board
APB122 AM29FXXX adaptor board1
APB123 AM29FXXX adaptor board2
APB126 M35080/D80 adaptor board
APB127 MC68HC0(7)05BXX adaptor board
APB128 MC68HC05X32 adaptor board



XP400 Pro Specifications:

Operating Temperature: -10℃ ~ 70℃ (14℉ ~ 158℉)
Storage Temperature: -20℃ ~ 85℃ (-4℉ ~ 185℉)
Port Type: B-USB, DB26, DC12
Input Voltage: 5 VDC, 12VDC
Operating Current: < 500 mA
Maximum Consumption: 2.5 W

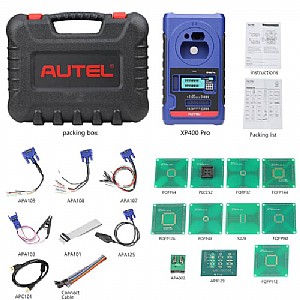

Package List:

1 x XP400 Pro Main Unit
1 x APB129 – EEPROM Adapter
1 x APA002 – EEPROM Socket
1 x APB125 – Mercedes Infrared Collector
1 x APB103 – MCU_PLCC52 Adapter
1 x APB104 – MCU_FQFP64 Adapter
1 x APB105 – MCU_FQFP80 Adapter
1 x APB106 – MCU_FQFP112 Adapter
1 x APB107 – MCU_FQFP144 Adapter
1 x APB108 – MCU_FQFP176 Adapter
1 x APB109 – MCU_FQFP32 Adapter
1 x APB110 – MCU_FQFP48 Adapter
1 x APB111 – MCU_SO28 Adapter
1 x APA101 – Spare Signal Cable
1 x APC101 – USB Cable (Standard USB –Type B USB)
1 x APA103 – EEPROM Clamp
1 x APA107 – ECU Cable
1 x APA108 – MCU Cable
1 x APA109 – MC9S12 Cable
1 x Dupont Line
