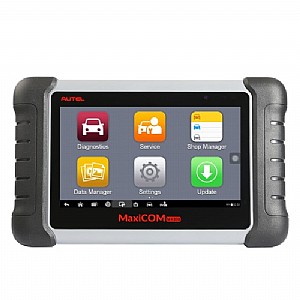

Original Autel MaxiCOM MK808 All System Diagnostic Tablet With 25 Special Functions Multi-Language
Item No. X30
Item Weight: 4.000Kg
MOQ: 1 Unit(s)
Price:



Original Autel MaxiCOM MK808 All System Diagnostic Tablet With 25 Special Functions Multi-Language


Can send from oversea warehouse, pls contact with us to calculate the shipping cost:carsung@hotmail.com

Highlights:

1. One Year Free Update Online. After Expiration, You Can Buy Autel MK808 Subsription at $150
2. Multi-Language Supported: Default Language is English, German, Spanish, Portuguese, Dutch, French, Italian. Korean, Japanese, Russian, Polish, Swedish for optional.
3. Easy to Use: Once accessed to the Diagnostics service of MaxiCOM MK808, here are a variety of functions available including oil reset and EPB/ BMS/ SAS/ DPF service which are used for the safety and efficient maintenance of systems.
4. Cost-Effective Scanner: Consists of the MD802 and MexiCheck Pro, this diagnostic tool provide you with advanced full-systems diagnoses. You are able to test not only 4systems but other systems including Body, Chassis, Powertrain, Communication and more.
5. Extensive Coverage: MaxiCOM MK808 works on most 1996 US-based, 2000 EU-based and newer vehicles to do the full systems diagnoses including reading/clearing codes and viewing live data to check the health status of parts. (Support many US cars after 1992, EU cars after 2002, Asia cars after 2008)
6. User-Friendly: This is a tablet diagnostic scanner with 7" touchable screen and enables sensitive response with fast quad-core process; Moreover, with Wi-Fi connection there is no USB or card reader needed for updating software (one-touch updates)

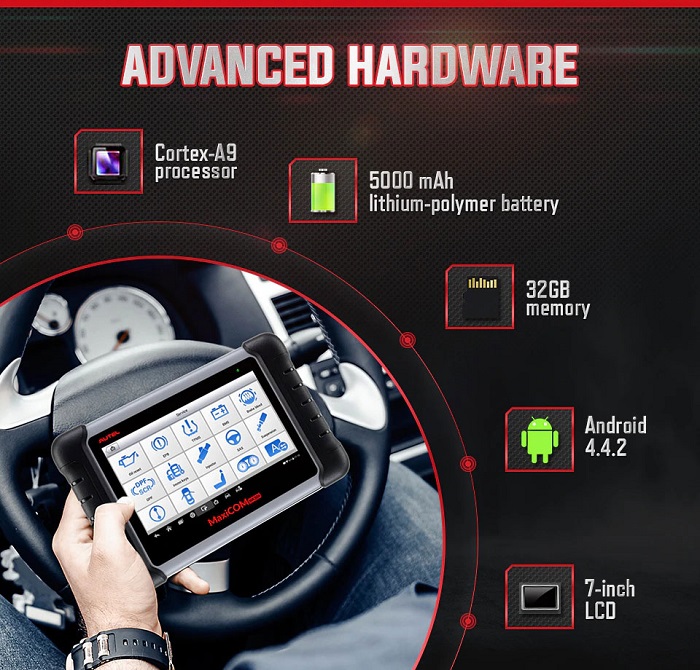

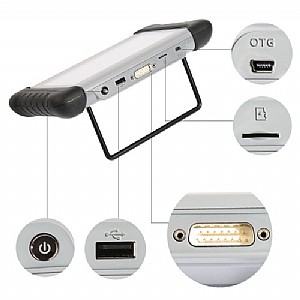

7. Advanced Hardware: Except its widely-used software, the advanced hardware also brings glory to its smooth and fast operation. Android-based tablet diagnostic tool greatly improves the working efficiency with performance and power optimized multi-core processor. 7 inch touchable LCD screen does a great job in the better using experience; you can directly get what you need with intuitive navigation.
32 GB memory is not only an extended storage space but a way to reduce the possible condition of slow response.
Built-in battery has up to 4.5 hours battery life giving you a worry free operation experien


Notice:
For Vehicle Coverage: Please visit Autel Official Website, refer to Support & Updates > Knowledge Base > Vehicle Coverage for details.

Deion:

Autel MaxiCOM MK808 is a powerful Android tablet with intuitive seven-inch touch screen capable of scanning all available modules for faulty codes and aiding in performing an extensive list of the most popular maintenance services including oil and service light resets and steering angle sensor calibration. The tool's quad-core processor and 32GB operating memory combined with its drill-down touch interface enables deft analysis of domestic, Asian and European vehicles, 1996 and newer.

Autel MaxiCom MK808, an advanced tablet automotive scan tool, has the capability of accessing all vehicle systems displaying ECU information, reading and erasing codes, viewing live data, and performing a series of special services. Providing a broad array of productive solutions, this Autel scan tool makes work easier for professionals performing vehicle diagnostics.

Autel MaxiCOM MK808 Features:

1. Read/clear codes for all available systems
2. Display live data in text, graph & analog for easy data review
3. Auto VIN technology can automatically identify the vehicle’s make, model and year information in no time
4. Relearn parking brake pad after replacement
5. Support IMMO functions
6. Support forced DPF regeneration and adjusting injectors
7. Reset Steering Angle Sensor (SAS)
8. Reset service mileage and service intervals
9. Support TPMS sensor relearn
10. Support battery registration and reset

Autel MaxiCOM MK808 Functions:

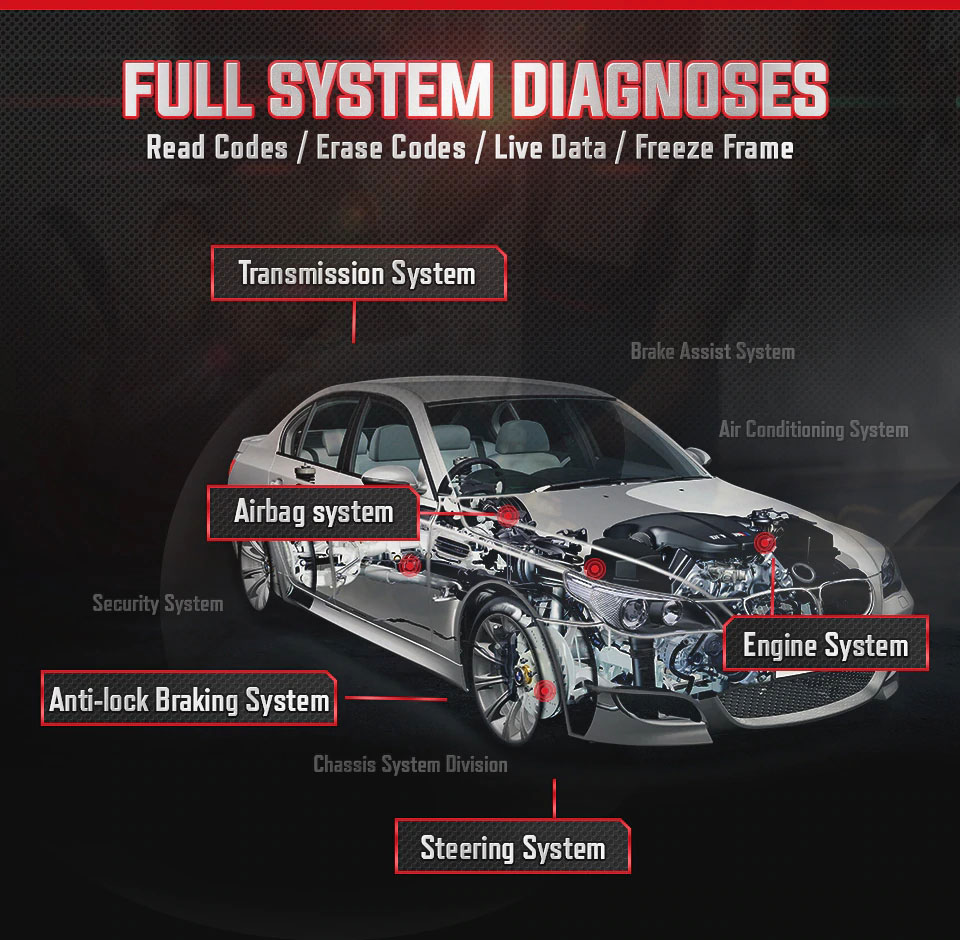

1. Full System Diagnosis: Read and erase codes for all available systems using the supported protocols. The tablet type MaxiCOM diagnostic tool is the best way to display live data in text, graph & analog for easy data review. Autel MK808 can help detect the engine ignition, fuel injection, air and fuel ratio, and exhaust emission conditions in Engine system to enhance vehicle performance, save energy and reduce exhaust emission.It makes great sense in the safety driving when your car is slipping or difficult to shift, this diagnostic tool can figure the problems out via reading codes in the Transmission system, or check the health status via live data viewing.

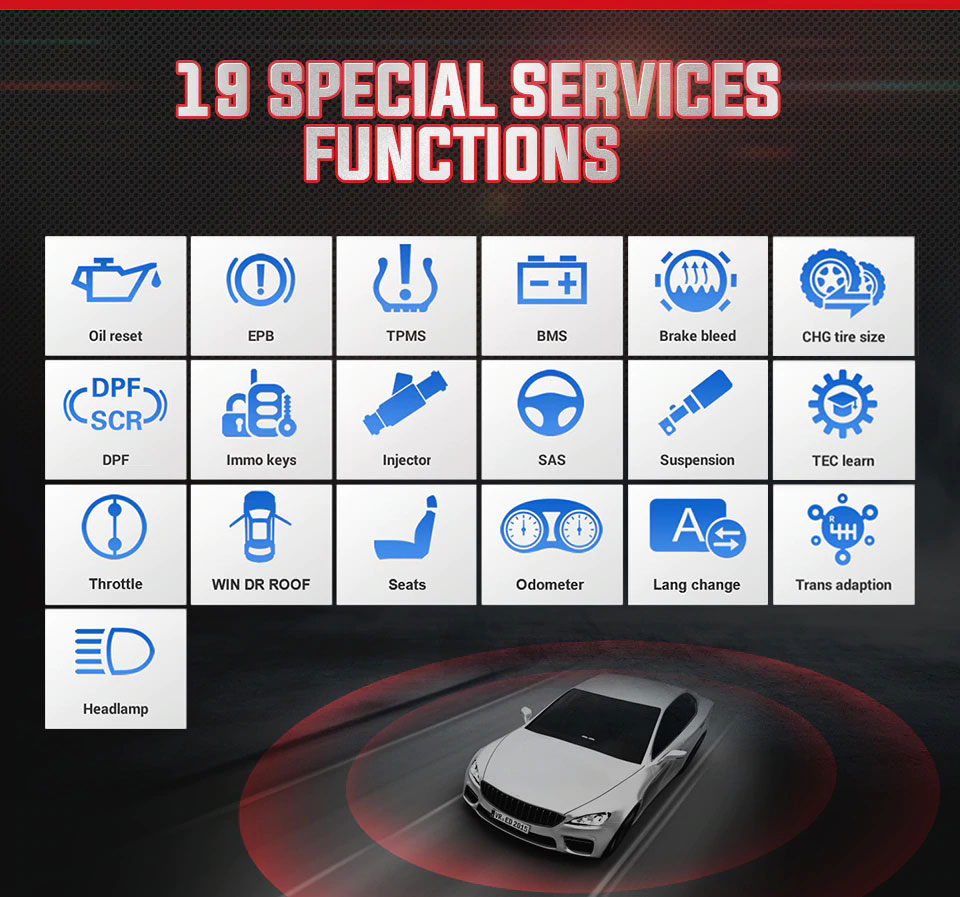

2. Special Service Functions:



Oil reset service allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.
EPB service is important in the maintenance of electronic braking system’s safety and efficiency.
BMS service allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.
DPF service specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.
SAS service helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.
TPMS service makes sense in displaying sensor IDs from the vehicle’s ECU, inputting TPMS sensor replacement IDs and testing sensors.
IMMO, the unique function MK808 has at this price, is mainly used to disable the lost vehicle keys and program a new replacement key fob.

3. Complete OBD2 Functions

1) Reading codes: Show the detailed deion of the Diagnostic Trouble Code (DTCs)
2) Erasing Codes & Reset: Turns off Check Engine Light (MIL), clears codes and resets monitors.
3) Data Stream: Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.
4) I/M Readiness Status: Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.
5) Read Live Data Stream: Show the information of continuous data stream from vehicle in live graphic (waveform) display.
6) View Freeze Frame Data: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.
7) O2 Sensor Test: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle's on-board computer.
8) On-Board Monitor Test: Retrieves and displays test results for emission-related power train components and systems.
9) Read Vehicle Information: Display the information such as VIN (Vehicle identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.
10) Component Test: Allows initiating a leak test for the vehicle's EVAP system.

4. Additional Features:

Superior Mechanics Assistant:
 In addition to the MaxiCOM standard features and special functions, there are also a host of enhanced features that are specifically designed for common repair shop work, including; Relearn parking brake pad position after replacement, Force fuel injector regeneration and adjustment, Battery registration and reset, Sensor relearning after repair or replacement

Shop Manager – You can well manage the workshop information with 3 available functions within this application: Vehicle History, Workshop Information, and Customer Manager. Intuitively look up the summarized details.
Data Manager – The best solution for the data related operations, you can store, print, and review the saved files in Image, PDF,Review Data, Apps Uninstall or Data Logging.
Remote Desk – you can directly get ad-hoc remote support from Autel via Team Viewer software.

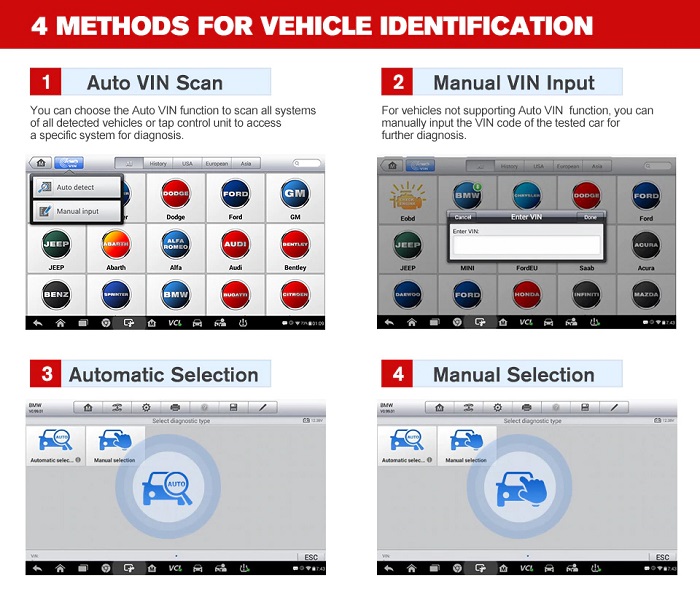

5. The MaxiCOM Diagnostic System Supports 4 methods for Vehicle Identification.

1) Auto VIN Scan: The MaxiCOM diagnostic system features the latest VIN-Based Auto VIN Scan function to identify vehicles and scan all the diagnosable ECUs and run diagnostics on the selected system. This function is compatible with 2006 and newer vehicles.
2) Manual VIN Input: For vehicles not supporting the Auto VIN Scan function, you may manually enter the vehicle VIN.
3) Automatic Selection: The Auto VIN Scan can be selected after selecting the test vehicle manufacturer.
4) Manual Selection: When the vehicle's VIN is not automatically retrievable through the vehicle's ECU, or the specific VIN is unknown, the vehicle can be manually selected.

Autel MaxiCOM MK808 Vehicle Coverage:

Asian and European vehicles after 1996. Utilizes new Auto VIN ID Tech to automatically identify the vehicle's make, model and year without the need for user assistance



Different Choice for Diagnoses:

MK808 is suitable for most OBD2 vehicles and support many car brands like Ford, Honda, Chevrolet, Jeep, Toyota, Dodge, GM, Volkswagen, Audi, BMW, Benz, etc.
When it comes to the Non-OBD2 vehicles, you can connect the device with vehicles via adapters (not included) to complete car diagnoses, and the signal connected will be more stable. This diagnostic tool support different kinds of adapter connection.

 Autel MK808 vs MP808K vs MS906BT vs MP808TS


Product MaxiCOM MK808 MaxiPRO MP808K MaxiSys MS906BT MaxiPRO MP808TS
Basic Diagnostic Functions
Read Codes
Erase Codes
Live Data
ECU Information
Active Test ×
Special Functions
Complete OBD Diagnostics
Services
Oil Service Reset
EPB Reset
Steering Angle Sensor Relearn
Battery Registration and Reset
DPF Regeneration
Tire Pressure Monitoring System
ABS Bleeding
Throttle, Injector,Odometer....
Complete TPMS Functions
Advanced TPMS Diagnostic
Activate 98% TPMS Sensors
Program Autel MX-Sensors
OBD Relearn Coverage
On-Screen Relearn Procedure
Supported Languages 13kinds 13kinds Egnlish 13kinds
Vehicle Coverage 50+ 80+ 80+ 80+
Hardware Configurations
Processor Cortex-A9 processor (1.5GHz) Cortex-A9 processor (1.5GHz) Samsung Exynos 6-core processor
(1.3GHz quad-core ARM cortex-A7+
1.7GHz dual-core ARM Cortex-A15)
Cortex-A9 processor (1.5GHz)
OS Android 4.4.4 Android 4.4.4 Android 4.4.2 KitKat Android 4.4.2 KitKat
SSD Hard Drive 32GB 32GB 32GB 32GB
Touch Screen Display 7" LCD 7" LCD 8" LCD 7" LCD
Connectivity Mini USB 2.0;
USB 2.0;
Wifi;
Micro SD Card
Mini USB 2.0;
USB 2.0;
Wifi;
Micro SD Card
Wifi;
DB16 DLC,
USB 2.0,
SD Card
Mini USB 2.0;
USB 2.0;
Wifi;
Micro SD Card
Internal Battery 3200 mAh 3200 mAh 5000 mAh 5000 mAh
Camera (Rear) × × 8.0 Megapixel, AF with Flashlight ×
VCI Connection × × ×
Vehicle Communication Method Wired Wired Wired Wired, Bluetooth
Auto VIN Technology

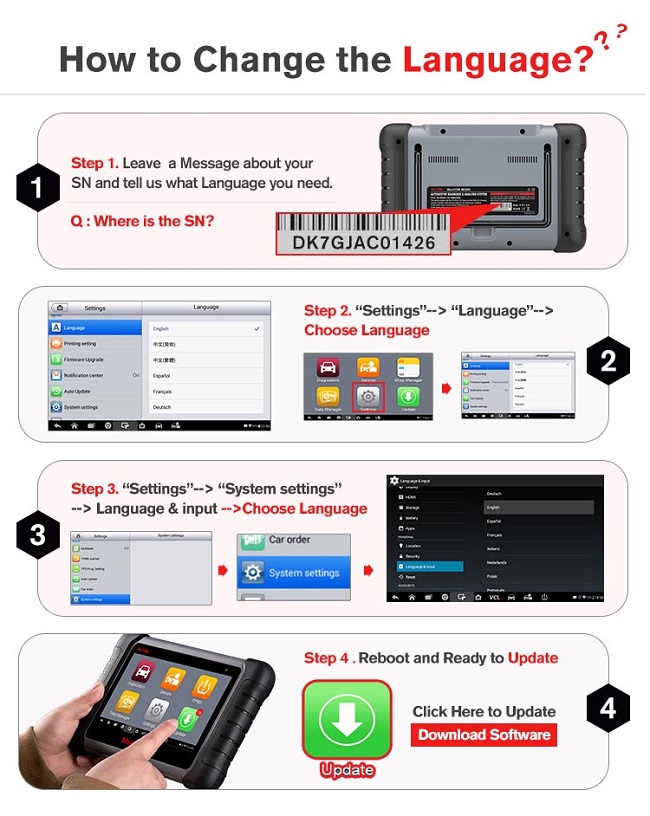

How to Change Language for Your Autel MK808?

1. Provide Device Serial Number So That We Can Change Language in Autel System for Your Device (You can not change it yourself)
2. Go "Setting" -->"Language" -->Choose Language You Need
3. Go  "Setting" --> "System Settings" --> Language & Input --> Choose Language You Need
4. Reboot the Tablet and then go "Update" to Download the software again.
Finally you can get the software in language you need

FAQs:

Q1: Does this have special functions? specifically calibrate turbo actuator vgt?
A1: Special functions yes, generic ones such as injectors, brake bleed, window regulators, headlamps oil light reset etc. I have not seen anything for turbo/supercharger functions.

Q2: Will this reprogram the tire monitors if I switch tires?
A2: Yes that's what I'm learning from a friend that knows this device I'm still learning the device in all but, it's a great device also he stated that we can program additional fob for vehicle

Q3: Can this scanner tool reset oil service light on 2013 Porsche vehicles and newer?
A3: Yes, it can be supported. It can support Porsche before 2017( 2017 included).



Autel MaxiCOM MK808 Customer Feedbacks:

Review 1:
This tablet diagnostic tool worked exactly as needed on the Nissan. I connected it with the OBD2 port and then powered it on.
It could be easily updated via Wi-Fi through the update package files and I didn’t need to connect it to the PC to download software, which was very convenient. Additionally, it supported Auto VIN retrieving, from which I could straightforwardly get detailed info of the car, ranging from engine type to where it was manufactured. There were two modes of diagnosing and I personally preferred "auto scan" because it offered full system diagnosis and comprehensive codes. But if you wanted to check a certain system, "control unit" was a better choice. By the way, I was impressed by the comprehensive Live Data Stream. When this function was selected, the screen displayed the data list for the selected module. I can transmit the parameters into graph, checking my car's real-time running status in an intuitive manner. It was fortunate that it owned shop manager and data manager for offering recorded historical problems, so I can take the historical as references when I encountered some hassles. Overall, if you’re a personal user, you would be able to detect and address lots of car issues by yourself without requiring the assistance of a skilled technician by your side.

MaxiCOM MK808 Specifications:

Recommended Use Indoor
Operating System AndroidTM 4.4.4
Processor Cortex-A9 processor (1.5 GHz)
Memory 32GB
Display 7-inch LCD capacitive touchscreen with 1024x600 resolution
Connectivity Mini USB 2.0
  USB 2.0
  Wi-Fi
  Micro SD card (supports up to 32GB)
Sensors Ambient light sensor for brightness auto adjust
Audio Input/Output Input: N/A
  Output: Beep
Power and Battery 3.7 V/3200 mAh lithium-polymer battery
  Charges via 5 VDC power supply
Tested Battery Life Around 4.5 hours of continuous use
Battery Charging Input 5 V/1.5 A
Power Consumption 500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
Operating Temp. 0 to 55°C(14 to 131°F)
Storage Temp. -20 to 60°C (-4 to 140°F)
Operating Humidity 5% - 95% non-condensing
Dimensions (W x H x D) 237.8 mm (9.4”) x 148.6 mm (5.9”) x 35.5 mm (1.4”)
Net Weight 788 g (2.42 lb.)
Supported Automotive Protocols ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM,
ISO11898(Highspeed, Middlespeed, Lowspeed and Singlewire CAN,fault-tolerant CAN), SAE J2610,
GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

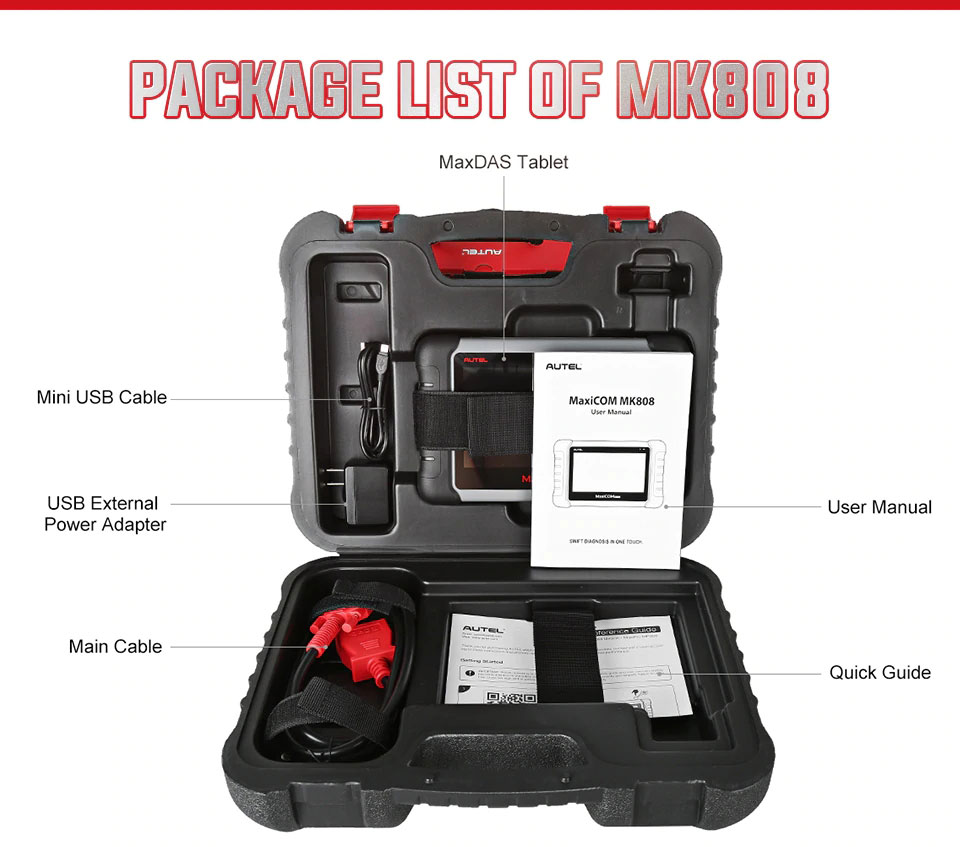

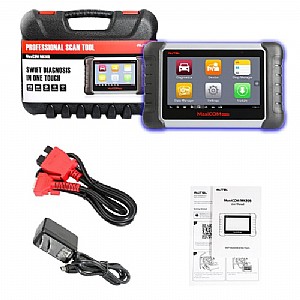

MK808 Package includes:

1pc x MK808 Tablet
1pc x USB External Power Adapter
1pc x User Manual
1pc x Quick Reference Guide
1pc x Main cable

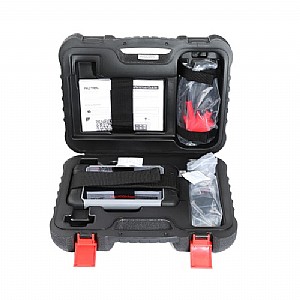

1pc x Carry case

1pc x Mini USB Cable
