Dimension:168*108*26mm,weight:300g.

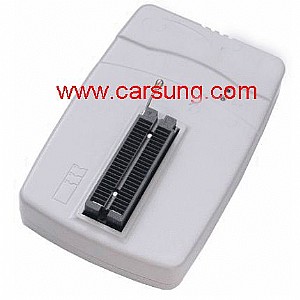

48 Pin ZIF socket with universal pin-drivers.
Interface with LAPTOP, PC or compatibles through USB port
Accepts standard file formats: JEDEC, INTEL (Extended) HEX, Motorola S record
Manages 16 and 32-bit word split (Set Programming)
Support most compiler in JEDEC format including ABEL, CUPL, PALASM, TANGO PLD, OrCAD PLD, PLD Designer and ISDATA
Features Test Vector capability and multiarray fuse map editor
Test TTL/CMOS logic ICs and Dynamic/Static Random Access Memory devices
Optimum programming for each individual device
Automaticly Identifies the manufacturer and type of E(E)PROMs, Auto identifies TTL/CMOS logic IC
Device insertion and poor-pin-contact check
Support 1.5v Low voltage devices
Not need exterior adapter for mostly devices.
Universal DIP, PLCC, QFP, TSOP, PSOP, SOIC, SSOP, SDIP adapters ( Up to 400 pins)
Auto-run mode starts programming automatically upon detection of chip insertion
Supports WindowsXP/2000/NT/Vista
Supports eight languages,such as Chinese(Simplified),Chinese(Traditional),English,Korean,Poland,Italian,
Portuguese and Dutch.
DEVICE SUPPORT:
PROM: N/CMOS E(E)PROM, SeriesE(E)PROM, and FLASH Memory
PLD: CPLD, EPLD, GAL,PEEL,PALCE and more
Microcontroller: Atmel, Intel, Microchip, Signetics, Zilog, etc.
IC TEST:
TTL (74 series), CMOS (40/45 series) Logic IC
DRAM (4164, 41464 ...), SRAM (2114, 6116 ...) memory device
