1, Over View:

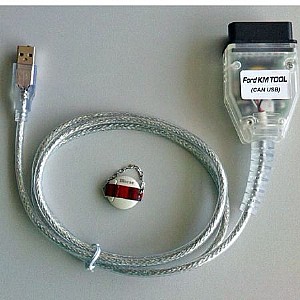

Ford KM Tool (CAN BUS) includes 3 parts: OBDII Device, sense dongle, software.

OBDII device: it should connect car and computer.

Sense dongle: it must connect to computer while the software is running.

Software: First choose car type, then you can use Read KM to get the old KM. Also you can use Write KM to change KM in car.

2, Functions:

Read KM: Read KM from car

Write KM: Write new KM into car.

About��?

The support instrument dash num, device info, newest version, update etc. All info can be get from here.

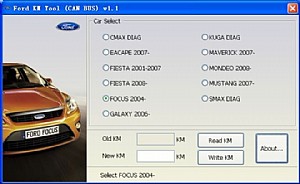

1) While the KM is reading:

2) After reading success:

3) While Writing KM:

4) After Written KM success:

While change KM, just follow the tips give in software bottom.

You can try some times if Write KM failed.

3, About��?

1) Support instrument dash:

*AA06-*-*  VP6M2F-*-*  VP8M2F-*-*  *8A6T-*-*  *6S6T-*-*  *4M51-*-*  *8V4T-*-* *4L2T-*-*  *7R33-*-*  *8L8T-*-*  *8C3T-*-*  *9T1T-*-*  *8T4T-*-*  *7M5T-*-* *6R33-*-*  *6F2T-*-*"

2) Device Info: From here you can get you Dongle ID, dongle version, device ID, device version.

3) Update Online: You must connect to internet for update. First you can find the newest version from the bottom. Then you can get you dongle version and device version with button Device Info. You can update your device and dongle if you find new version. For software you can download from our web site.

Warning: While updating dongle and device, please don’t stop the update process. After update you must reconnect the device. Dongle doesn’t need.

4, End:

If you find any problem, you can send car type and log.bin file to us. The log file is in the same directory with the software. Also you can submit your question in our forum.

5, Package included:

1pc * Ford KM TOOL Cable

1 pc * USB Dongle

1pc * CD
