Hao301 digital oscilloscope.

Hao301, as our fifth-generation digital oscilloscope, has been
improved a lot based on the previous product; meanwhile, this digital oscilloscope makes use of limitless resources of
software on limited hardware resources equipping itself with frequency meter, digital voltmeter, nonlinearity measurement
and logic analyzer and etc.
.

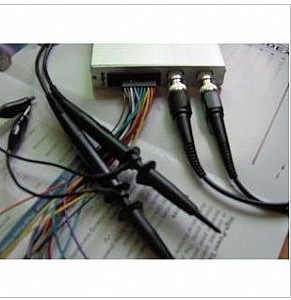

Fittings: a USB wire, a host machine, a software disk, two
60MHz oscilloscope probes, a set of 20 galleries logic probes.
The chart one is the No.1 logic probe. There’re sixteen galleries
that are effective and the rest four are reservation passageways.
The input voltage of logic probes cannot be more than 10V

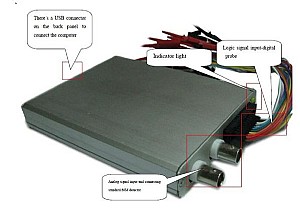

There’s a USB connector
on the back panel to
connect the computer
Analog signal input end connecting
standard 60M detector
Logic signal input-digital
Indicator light probe
3
Hao301 functional features:
Multiple functions: a machine of multiple functions serving as an ordinary oscilloscopeor logic analyzer.
Appropriate design: small and exquisite, convenient for bringing out, powerful functions and helpful in development
or experiment.
Real time sampling rate: 48MHz.
Bandwidth: 5MHz.
Voltage measurement range: +80V (for the measurement of weak current signal only, not for strong current signal)
Nonius measurement: voltage and pulse width
Pause: after suspension, you can zoom wave forms deeper and for other operations.
Real-time automatic display of current signal: average voltage value, frequency and peak-to-peak value
Hardware triggering: with upper limit and lower limit or upper/ lower limit trigger functions
Wave form shooting: its length is subject to the size of your hard disk only
Shooting wave form: reappear and manipulable
Adjustable USB rate: the rate is adjustable meeting requirements for performances of different computers
USB’s highest rate: 42MB/S, lowest rate: 0.75MB/S
Diversity of signal input: measurement of analog signal and digital signal
The more comfortable access interface and standard and universal connectors
System: windows 32 bit operating system
We’ve been engaged in the development of oscilloscope providing free upgrading of software and after-sale service.
